Configuring Network Address Translation (NAT)

Configuring NAT

4. In the Typ e field, use the drop-down menu to select either Inside (Private)

or Outside (Public).

5. Click the OK button.

The interface is now listed on the Security > NAT > Interfaces screen.

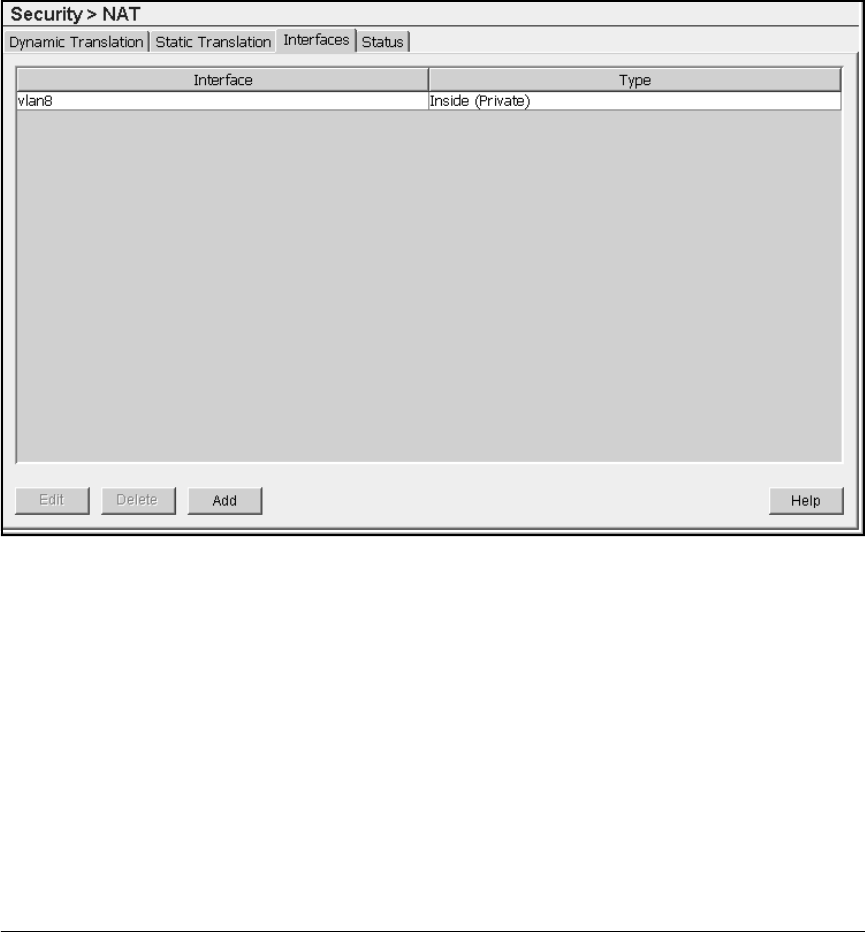

Figure 8-12. Interface Assignment in Security > NAT > Interfaces Screen

Configuring Dynamic NAT

For each NAT configuration that will use dynamic NAT, you must first set up

an ACL. This ACL contains rules that select the source addresses for traffic to

be translated. For information about creating this ACL, see Chapter 7: Access

Control Lists (ACLs) and “Configuring Standard ACLs for Dynamic NAT” on

page 8-20.

To configure dynamic translation, complete these steps:

1. Select Security > NAT and click the Dynamic Translation tab.
