8-25

Configuring Network Address Translation (NAT)

Configuring NAT

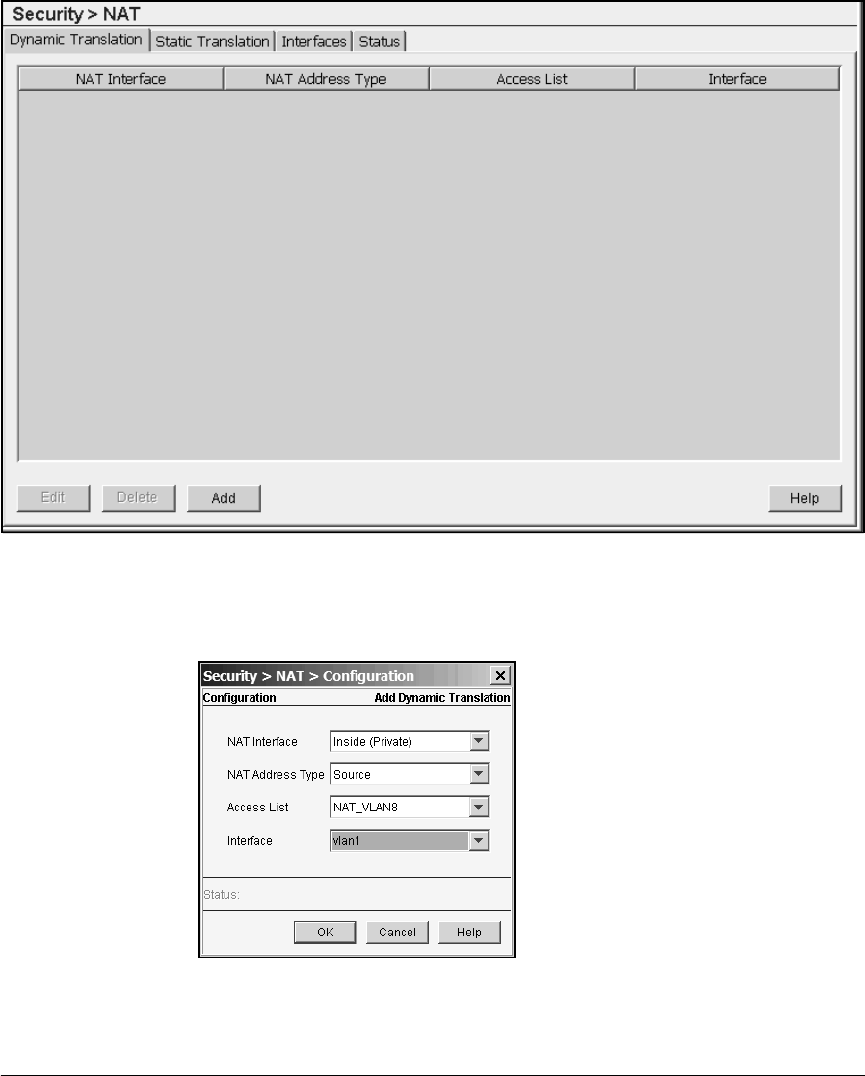

Figure 8-13. Security > NAT > Dynamic Translation Screen

2. Click the Add button. The Add Dynamic Translation screen is displayed.

Figure 8-14. Add Dynamic Translation Screen
