8-27

Configuring Network Address Translation (NAT)

Configuring NAT

The definition for dynamic translation is now listed on the Security > NAT >

Dynamic Translation screen. Remember: the translation does not take effect

unless you define an interface as the type on which you configured dynamic

NAT. (See “Defining Interfaces as Outside or Inside” on page 8-22.)

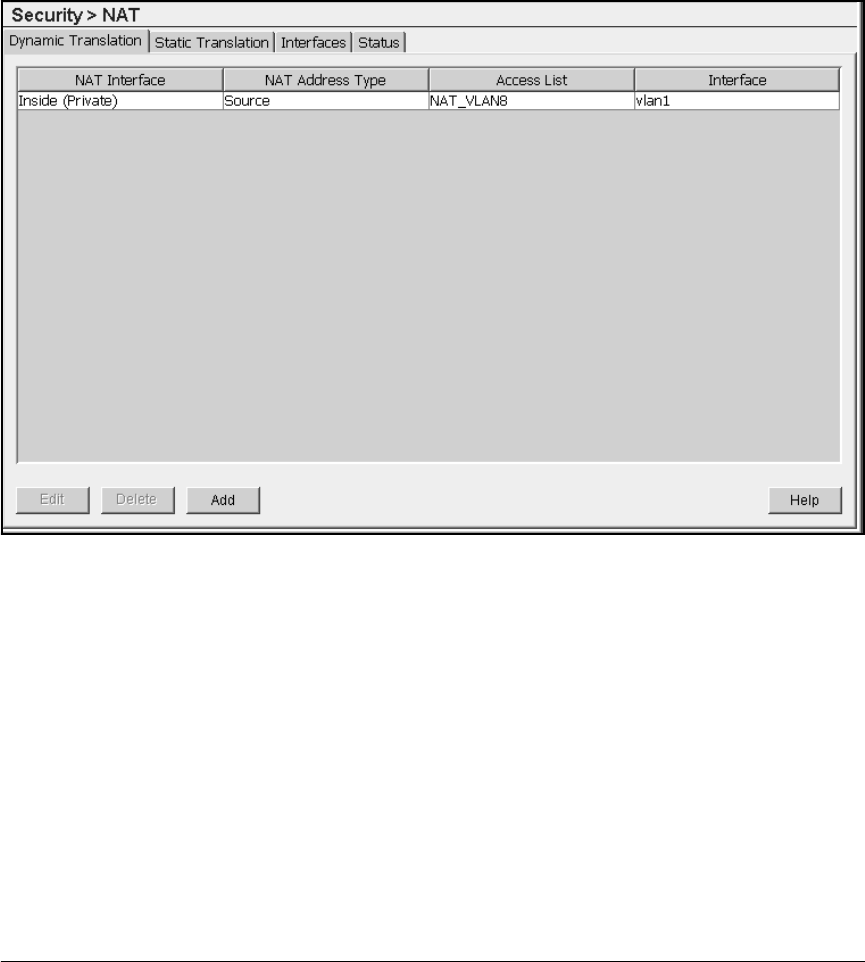

Figure 8-15. Dynamic NAT Configuration in the Security > NAT > Dynamic

Translation Screen

Configuring Static Translation

Static translation sets up a one-to-one correspondence between a source or

destination IP address and a translated IP address.

The configuration steps depend on whether you configuring static source NAT

or static destination NAT.
