8-28

Configuring Network Address Translation (NAT)

Configuring NAT

Configuring Static Source NAT

When the Wireless Edge Services xl Module stands between two networks

that use different IP addresses, static source NAT allows a device in one

network to reach devices in the other network. The module translates traffic’s

source address so that the device that sent the traffic appears to have a valid

IP address in the other network.

Note that the more typical configuration for source NAT is often dynamic NAT

because it allows multiple devices to share the same translated IP address.

To configure a static source translation, complete these steps:

1. Select Security > NAT and click the Static Translation tab.

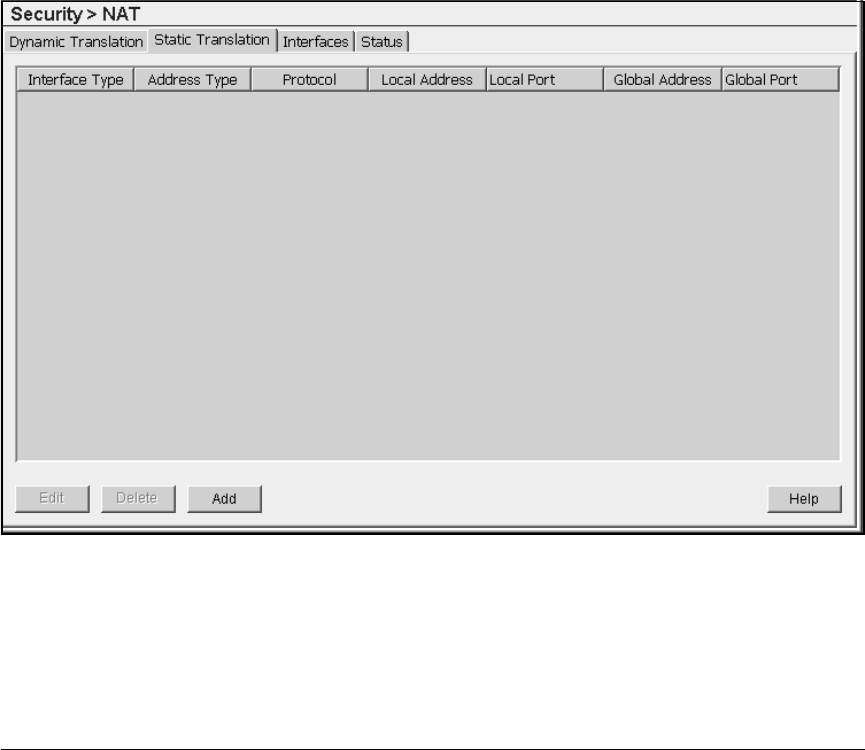

Figure 8-16. Security > NAT > Static Translation Screen

2. Click the Add button. The Add Static Translation screen is displayed.
