Configuring Network Address Translation (NAT)

Configuring NAT

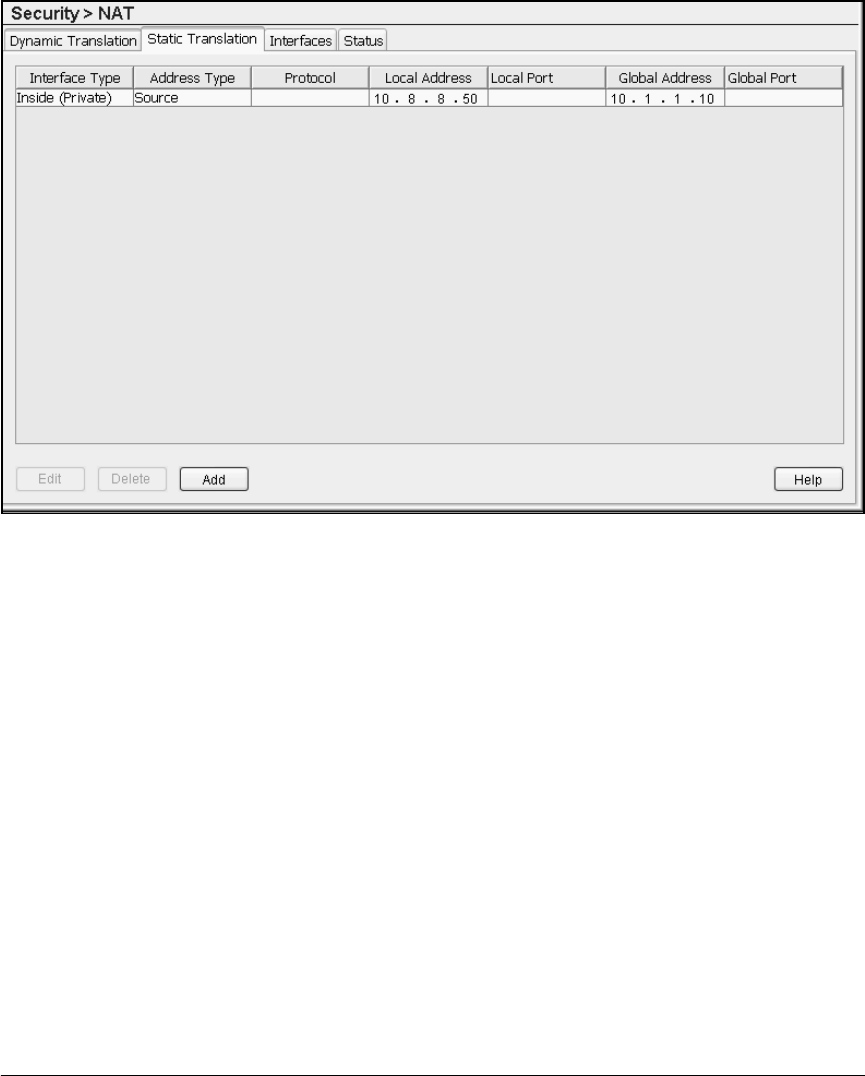

Figure 8-18. Static NAT Definition in the Security > NAT > Static Translation Screen

Configuring Static Destination NAT

Again, the Wireless Edge Services xl Module stands between two networks

that use different IP addresses. Destination NAT allows clients in one network

to open sessions with servers in the other network. You must configure

destination NAT statically.

To configure a static destination translation, complete these steps:

1. Select Security > NAT and click the Static Translation tab.
