Configuring Network Address Translation (NAT)

Configuring NAT

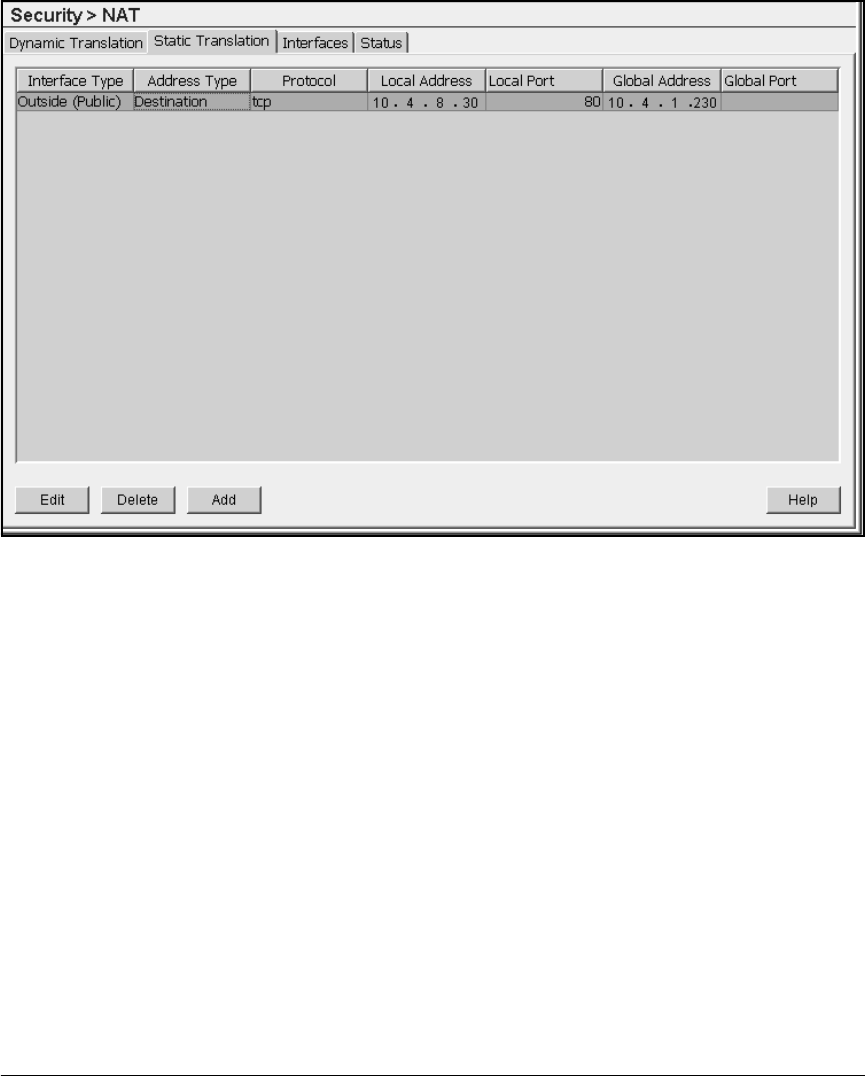

Figure 8-21. Static NAT Definition in the Security > NAT > Static Translation Screen

Viewing NAT Status

To view current translations, select Security > NAT and click the Status tab.

Alternatively, you can select Security and click the NAT Status tab. (See

Figure 8-22.)
