8-37

Configuring Network Address Translation (NAT)

Configuring NAT

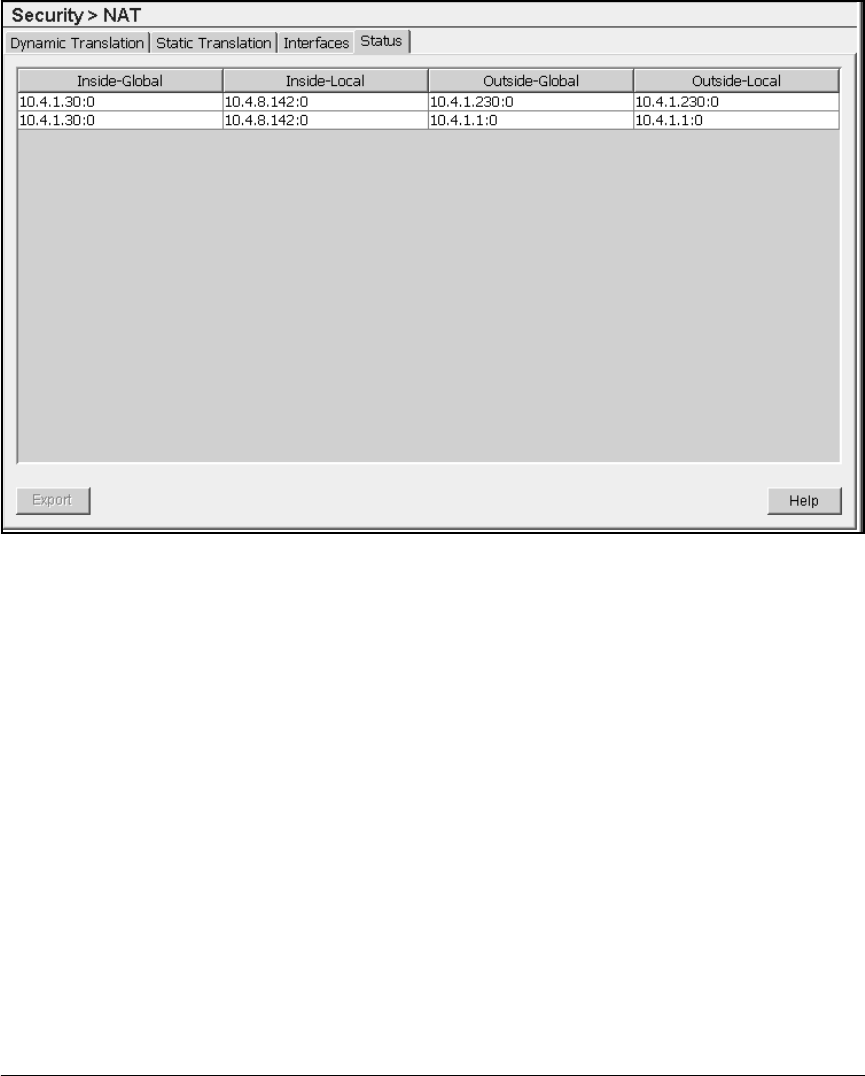

Figure 8-22. Security > NAT > Status Screen

Each active session to which the Wireless Edge Services xl Module has applied

NAT is displayed in a row. The screen columns show the IP addresses

associated with the session:

■ Inside-Global—the source IP address as it appears in the destination

device’s network

■ Inside-Local—the source IP address as it appears in the source device’s

network

■ Outside-Global—the destination IP address as it appears in the destination

device’s network

■ Outside-Local—the destination IP address as it appears in the source

device’s network

For example, if you have configured dynamic source NAT on inside traffic, the

Inside-Local column lists the IP address of the source device in the inside

network. The Inside-Global column lists the translated IP address. (See the top

row in Figure 8-22.)
