9-6

Fast Layer 2 Roaming and Layer 3 Mobility

Overview

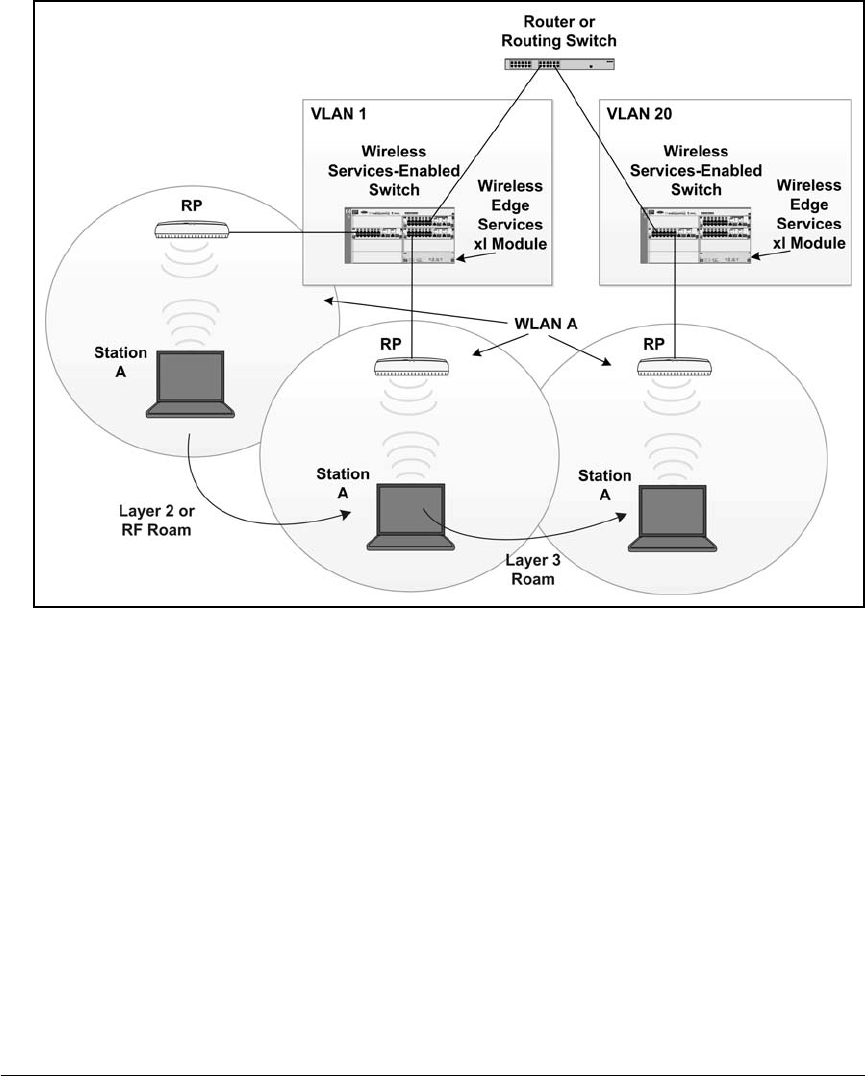

Figure 9-1. Network Requiring Layer 3 Mobility

To implement Layer 3 mobility, Wireless Edge Services xl Modules perform

these functions:

■ The modules support a Layer 3 mobility domain.

The area in which stations can roam freely (no matter which subnetworks

are supported in that area of the wired network) is the Layer 3 mobility

domain. The Wireless Edge Services xl Modules in the roaming domain

are referred to as peers. A domain can include up to 12 peers, each of

which can support up to 500 stations.
