9-12

Fast Layer 2 Roaming and Layer 3 Mobility

Configuring Fast Layer 2 Roaming for WPA/WPA2 with 802.1X

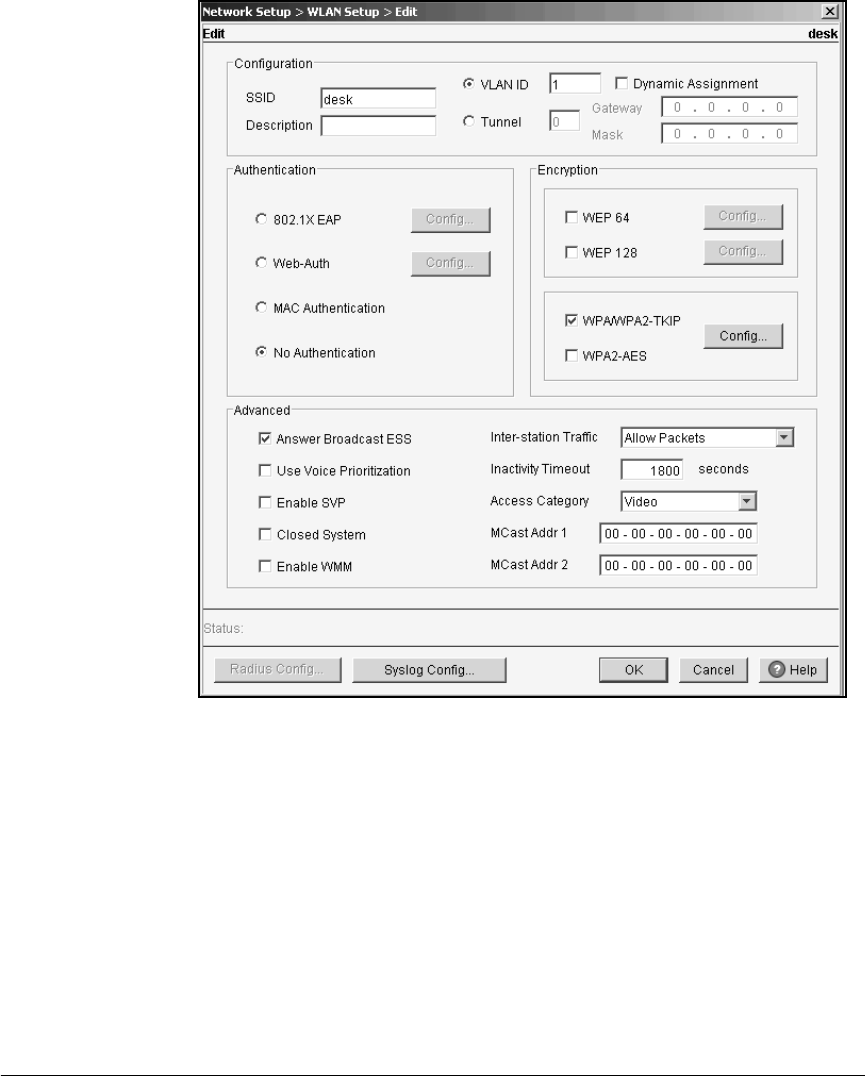

Figure 9-3. Configuring Settings for a WLAN That Uses Pre-Authentication

5. Click the Config button next to the encryption standard. A screen for

editing the encryption options is displayed.
