9-16

Fast Layer 2 Roaming and Layer 3 Mobility

Configuring Layer 3 Mobility

Dynamic VLAN assignment is incompatible with Layer 3 mobility. If the

WLAN requires Layer 3 mobility, you must access the WLAN’s Edit screen

and uncheck the Dynamic Assignment box. (See “Setting Basic Configura-

tion Options: SSID and Interface” on page 4-30 of Chapter 4: Wireless

Local Area Networks (WLANs).)

4. Click the Apply button.

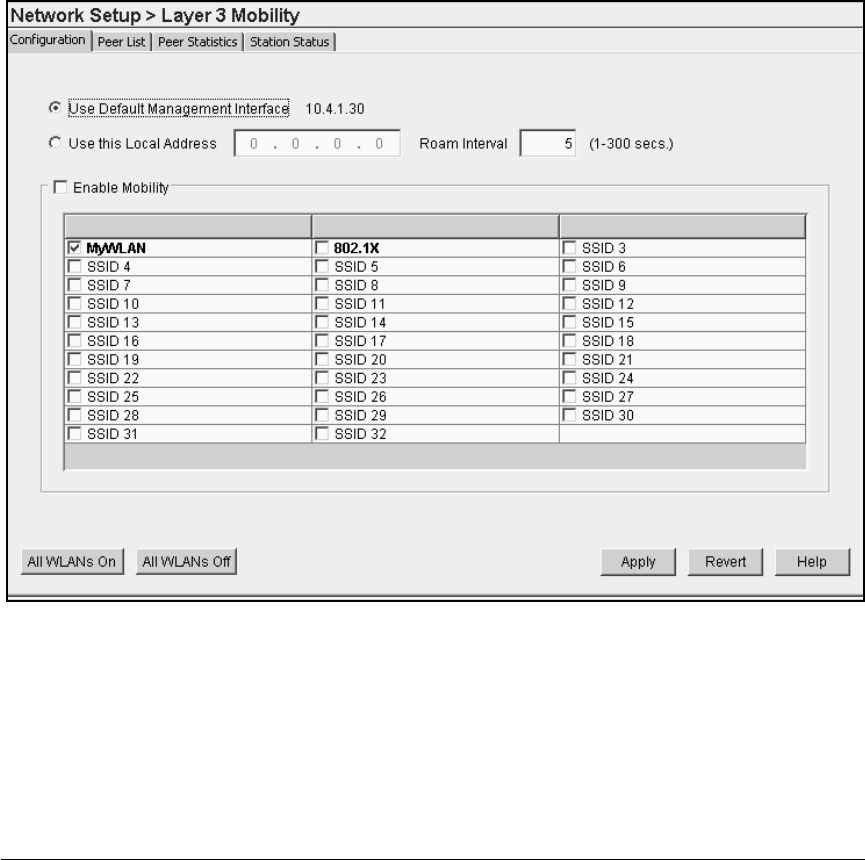

Figure 9-6 displays an example configuration.

Figure 9-6. Configuring Layer 3 Mobility Settings

Specifying Layer 3 Mobility Peers

Other Wireless Edge Services xl Modules in the Layer 3 mobility domain are

called peers. To specify their addresses, complete these steps:

1. Select Network Setup > Layer 3 Mobility and click the Peer List tab.
