Fast Layer 2 Roaming and Layer 3 Mobility

Verifying and Managing Layer 3 Mobility

Viewing a Station’s Status

A successful Layer 3 roam should meet these criteria:

■ The station roams seamlessly at Layer 2—that is, the station reassociates

and re-authenticates in the background.

■ The station maintains its IP address.

■ The Wireless Edge Services xl Module that supports the station’s new RP

becomes the station’s CM and tunnels traffic back to the station’s HM.

To test Layer 3 roaming, move a station from one RP’s cell to the cell of an RP

supported by a different Wireless Edge Services xl Module. Verify that the

station’s IP address remains the same and sessions remain active.

You can also verify a Layer 3 roam from your module’s Web browser interface.

To view information about stations, select Network Setup > Layer 3 Mobility and

click the Station Status tab. You can also view this information by selecting

Device Information > Wireless Stations > Layer 3 Mobility-Station Status.

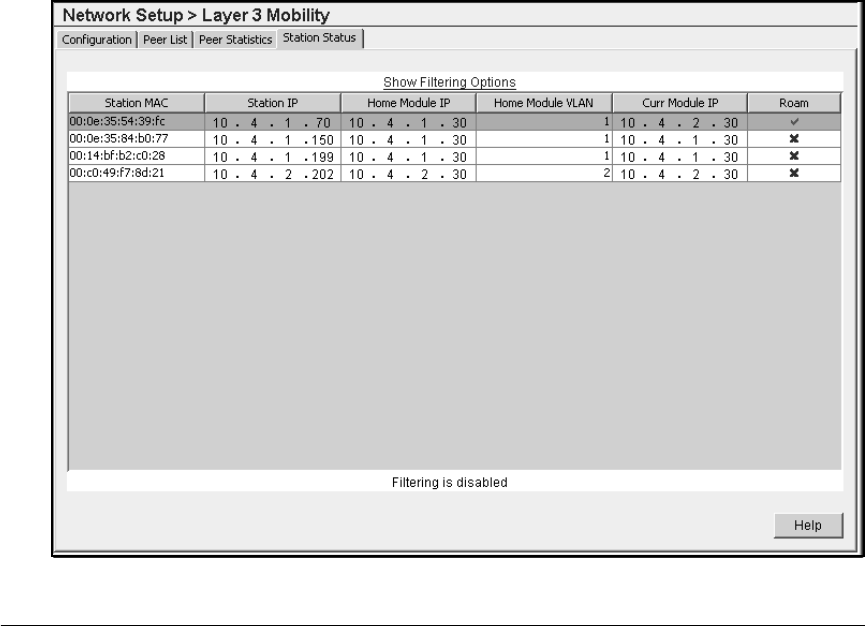

Figure 9-12. Viewing a Station’s Status
