10-12

Redundancy Groups

Configuring a Redundancy Group

Configuring Redundancy Group Settings

Redundancy group settings must match on all members of the group. (How-

ever, each member has its own IP address.) To configure the redundancy group

settings a module, complete these steps:

1. Select Network Setup > Redundancy Group and click the Configuration tab.

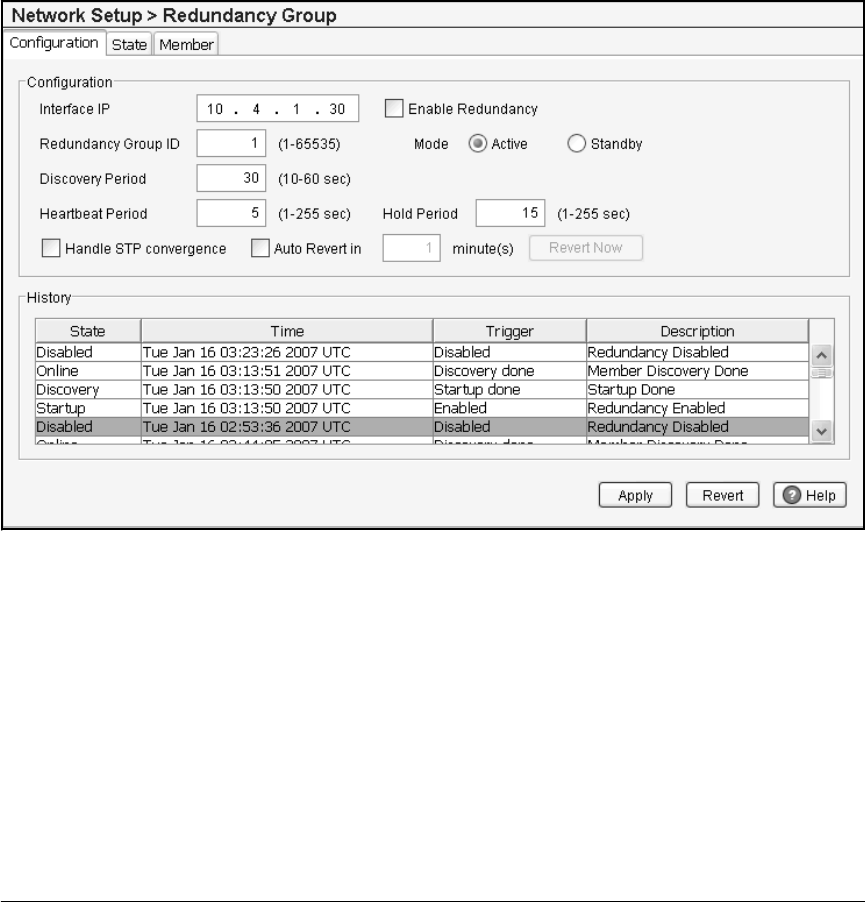

Figure 10-3. Network Setup > Redundancy Group > Configuration Screen

2. In the Interface IP field, enter the IP address of the module that you are

configuring. The redundancy feature uses this IP address to send heart-

beat and update messages to the other modules in the redundancy group.

(When you configure the redundancy group on the other modules, you

enter this IP address when you add a member.)
