10-15

Redundancy Groups

Configuring a Redundancy Group

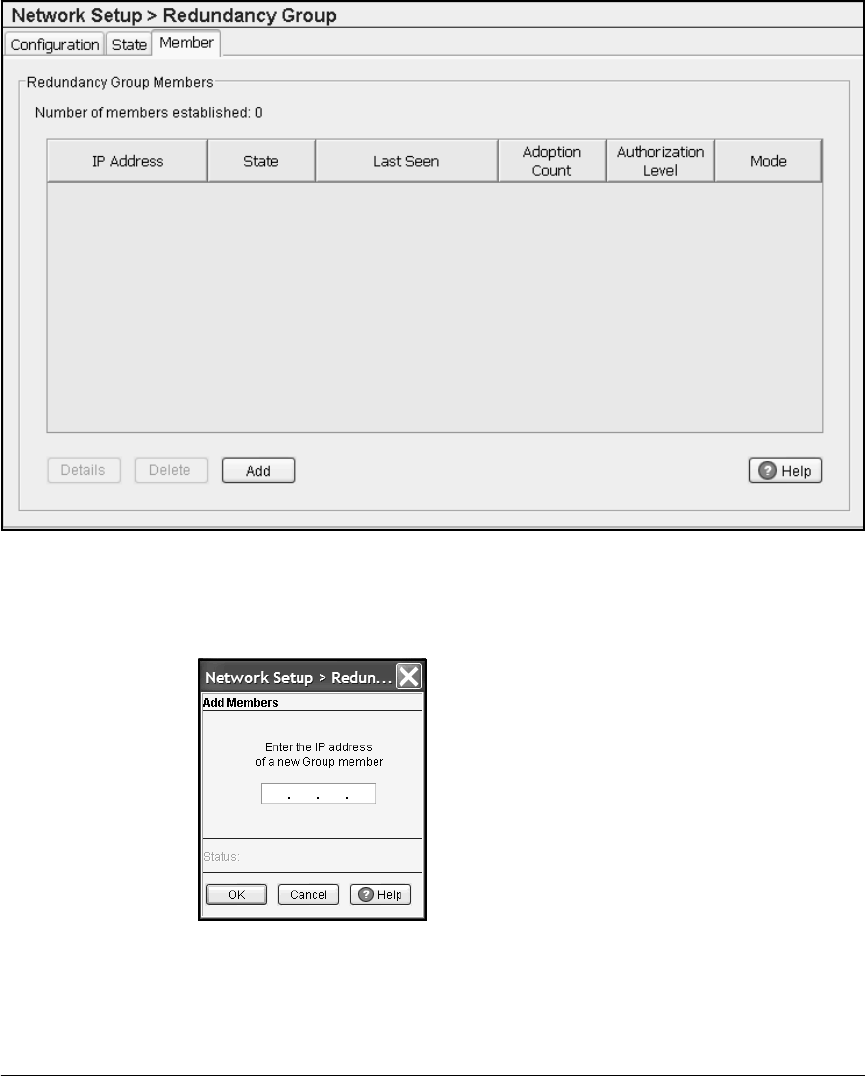

Figure 10-4. Network Setup > Redundancy Group > Member Screen

2. Click the Add button. The Add Members screen is displayed.

Figure 10-5. Add Members Screen
