10-17
Redundancy Groups
Configuring a Redundancy Group

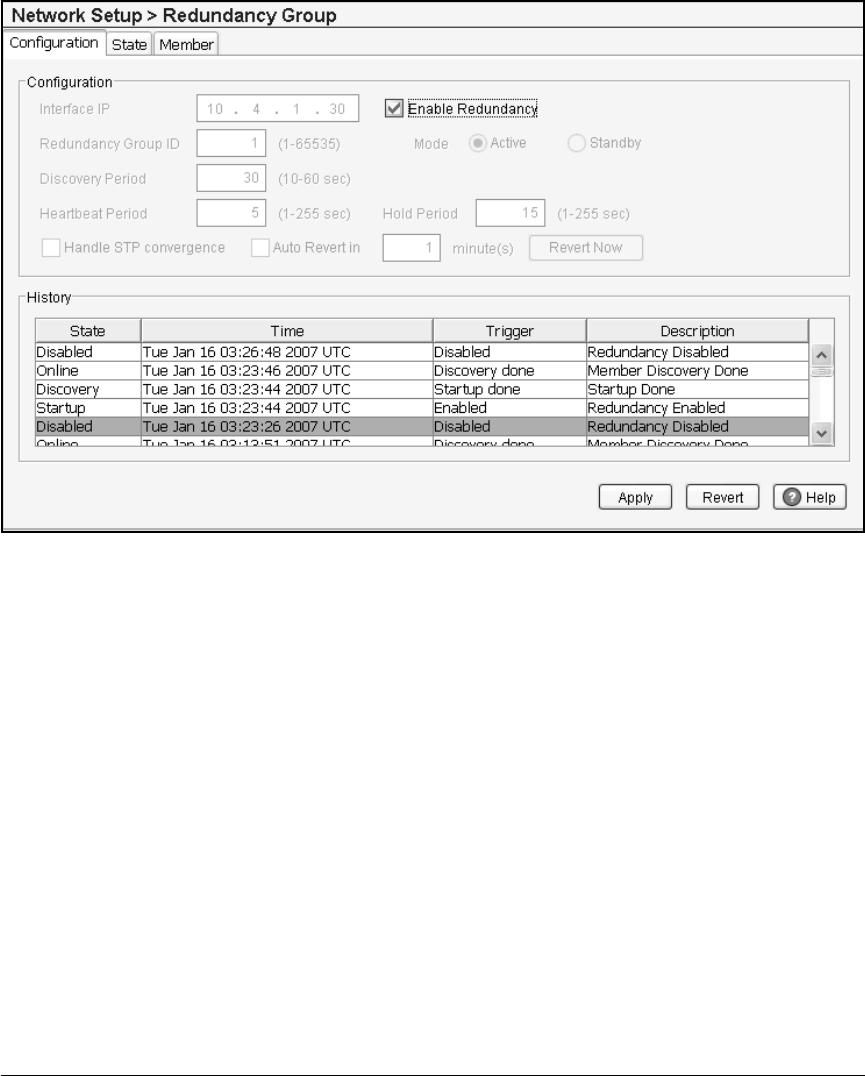

Figure 10-6. Redundancy Group Enabled
3. Click the Apply button to save the configuration to the running-config.
4. Click the Save link at the top of the Web browser interface to save the
changes to the startup-config.
5. Access the Web browser interfaces for each of the other modules in the
redundancy group and configure those modules in the same way.
