Redundancy Groups

Configuring a Redundancy Group

Viewing Information about the Redundancy Group

To view information about the redundancy group, select Network Setup >

Redundancy Group and select the State tab.

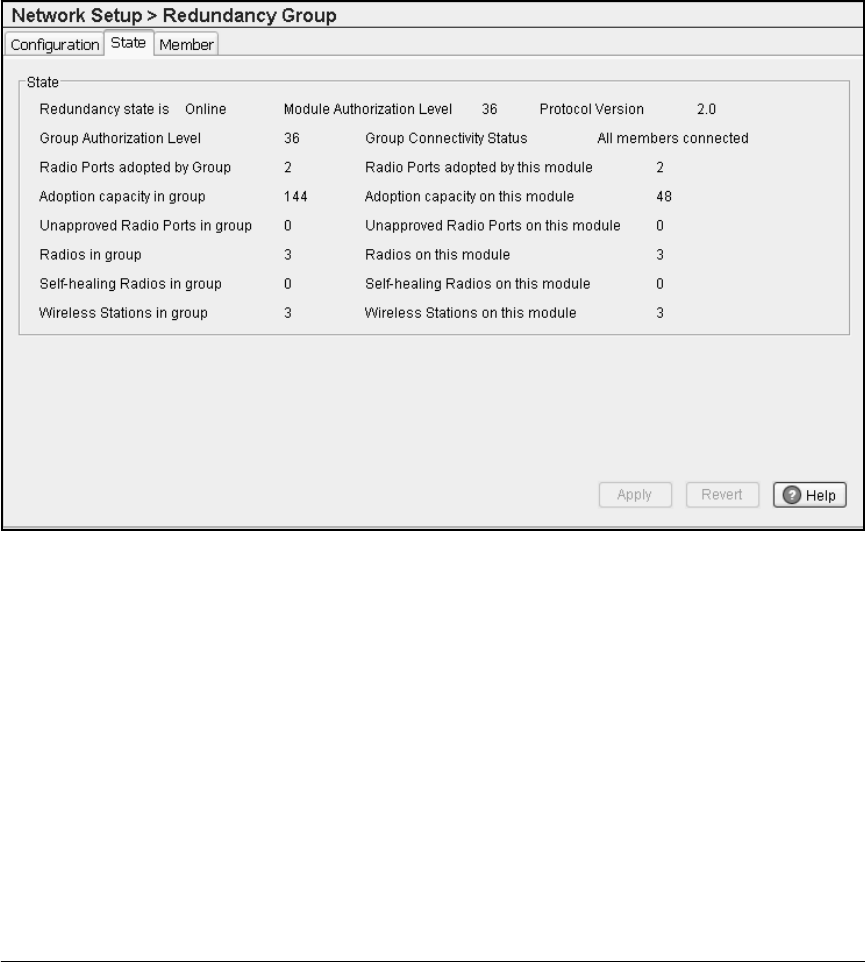

Figure 10-7. Network Setup > Redundancy Group > State Screen

After the primary module and the redundant modules establish a redundancy

group, each module tracks the following information about the group:

■ Redundancy state is—This field lists the current state of the module. Both

primary and redundant modules go through the same redundancy states:

• Disabled

•Startup

• Discovery

•Online

If this module is running redundancy, its state is Online.
