Redundancy Groups

Configuring a Redundancy Group

Viewing Information about the Other Members of the

Redundancy Group

In addition to viewing information about the redundancy group, you can view

information about the other members of the group. Select Network Setup >

Redundancy Group and click the Member tab.

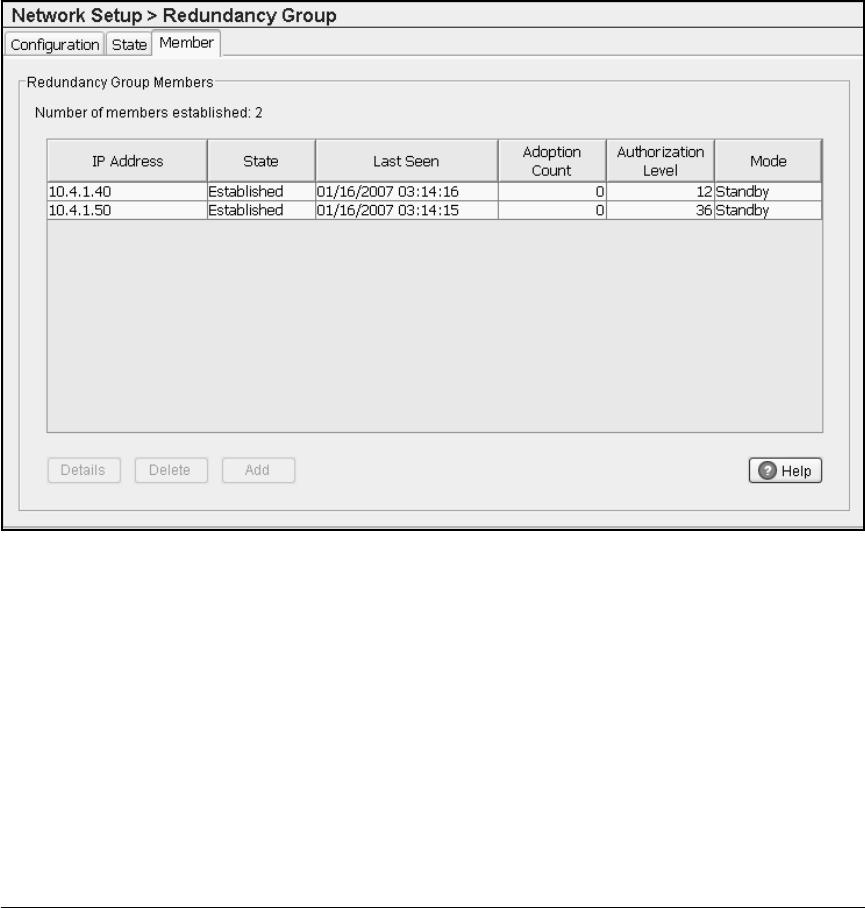

Figure 10-9. Network Setup > Redundancy Group > Member Screen

You can select a member and review the following information about the

selected member:

■ IP Address

■ State—what the module knows about this member

• Configured—The member is configured on the current module but no

additional information is known about the member.

• Seen—The module has exchanged heartbeats with this member.

• Invalid—The redundancy group settings on the member (including

heartbeat time, discovery time, hold time, redundancy ID, and redun-

dancy protocol version) do not match the configuration on this module.
