Redundancy Groups

Configuring a Redundancy Group

• Not Seen—The module can no longer exchange heartbeats with the

member.

• Established—The module and this member have successfully estab-

lished a redundancy group.

■ Last Seen—the day of the week, the date, the time, and the year that the

module last received a heartbeat from this member

■ Adoption Count—the number of RPs adopted by the member

■ Authorization Level—the maximum number of RP licenses on this member

■ Mode—standby or active

If you want to view additional information about the selected member in the

redundancy group, click the Details button. The Details screen is displayed.

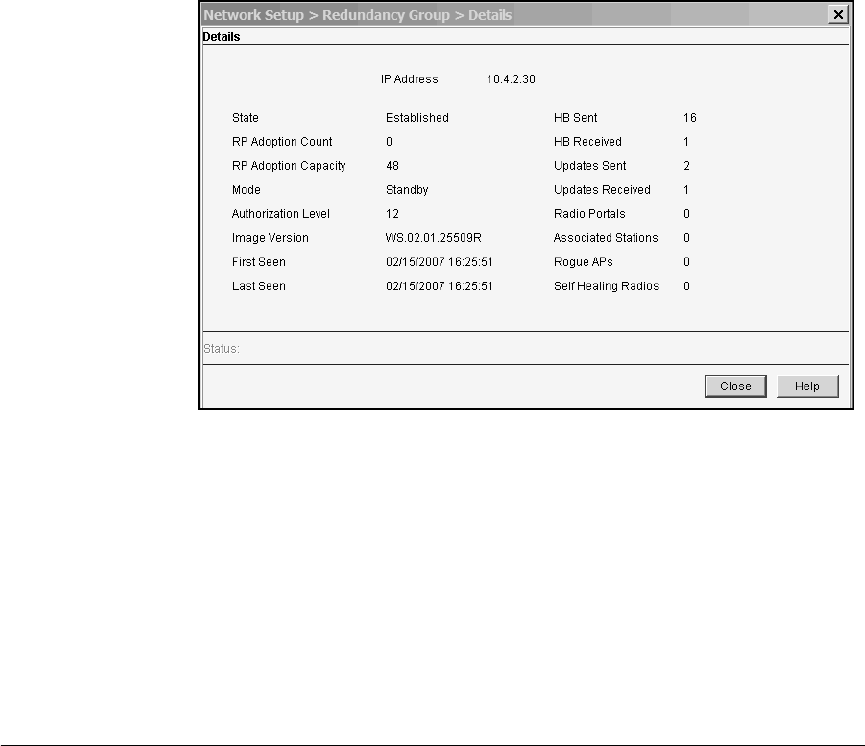

Figure 10-10.Member Details Screen

In addition to the fields listed on the preceding screen, the Details screen lists:

■ Image Version—the software image used by this member.

■ First Seen—the day of the week, the date, the time, and the year that the

module first received a heartbeat from this member

■

HB Sent

—the number of heartbeats that the module has sent to this member

■ HB Received—the number of heartbeats that the module has received from

this member

■ Updates Sent—the number of updates that the module has sent to this

member
