10-28

Redundancy Groups

Configuring a Redundancy Group

Configure an Adoption Preference for the Module

To set an adoption preference for the module itself, complete these steps:

1. Select Network Setup > Radio and click the Configuration tab.

2. Click the Global Settings button. The Global screen is displayed. (See

Figure 10-11.)

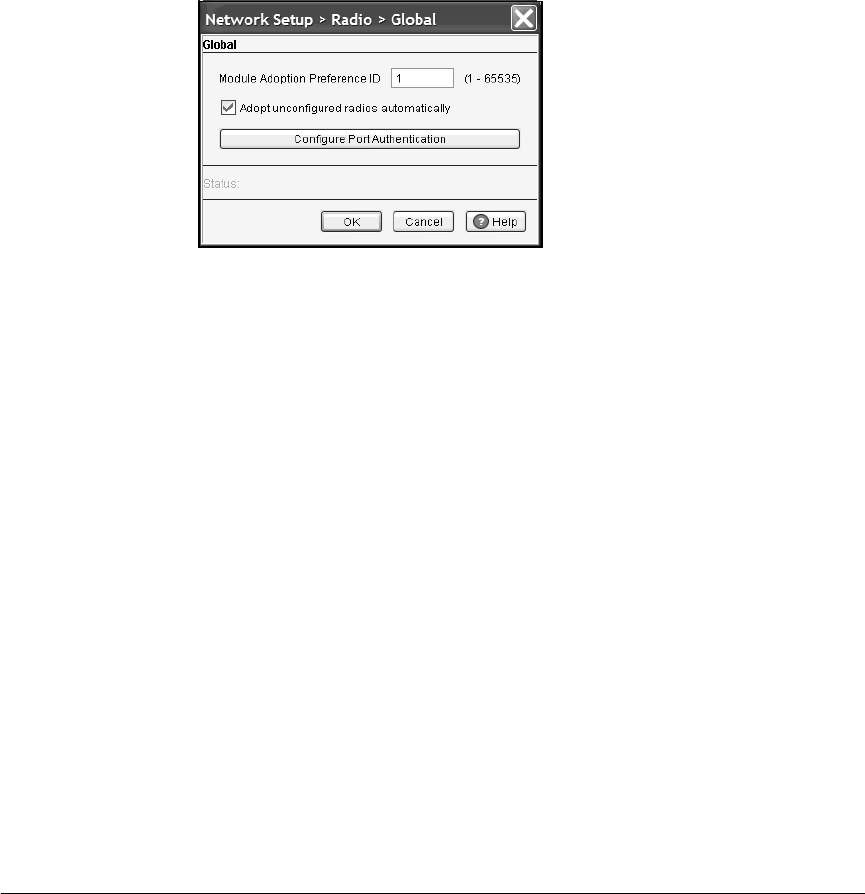

Figure 10-11.Global Settings Screen

3. In the Module Adoption Preference ID field, enter a number, and then click

the OK button.

4. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.

Configure an Adoption Preference for Targeted Radios

To configure an adoption preference ID for a single radio, follow these steps:

1. Select Network Setup > Radio > Configuration.
