10-29

Redundancy Groups

Configuring a Redundancy Group

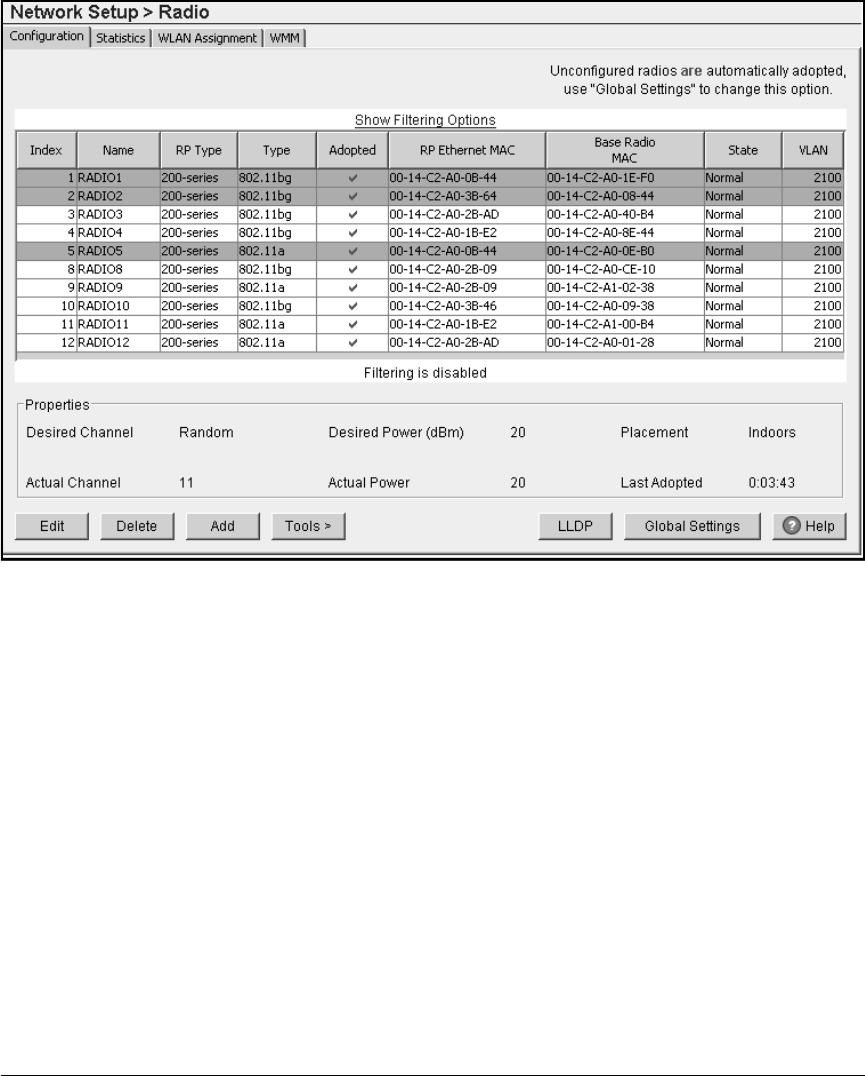

Figure 10-12.Network Setup > Radio > Configuration Screen

2. Select the radio or radios to which you want to assign the adoption

preference ID.

Hold down

Ctrl while selecting the radios to select multiple radios and

assign them the same ID.

3. Click the Edit button. The radios’ Edit screen is displayed.

If you have selected multiple radios, the screen has limited configurable

options. (See Figure 10-13.) However, you can change the adoption pref-

erence ID.

4. In the

Adoption Preference ID

field, enter the ID that you have assigned to

the Wireless Edge Services xl Module that should adopt the radio or radios.
