10-30

Redundancy Groups

Configuring a Redundancy Group

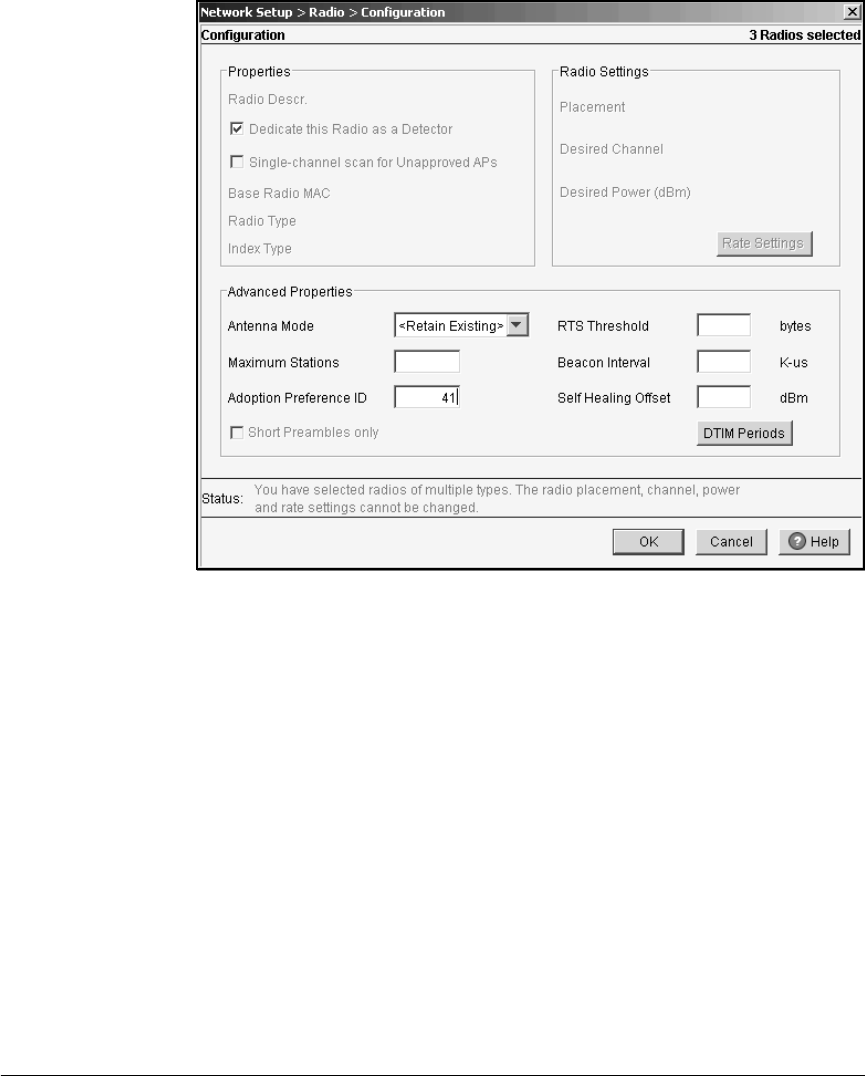

Figure 10-13.Network Setup > Radio > Edit Screen for Multiple Radios

5. Click the OK button.

6. Click the Save link to copy the radio configurations to the startup-config.

Configure an Adoption Preference for Newly Adopted Radios

To configure an adoption preference ID for all adopted RPs, edit the radio

adoption default configuration. Complete these steps:

1. Select Network Setup > Radio Adoption Defaults and click the

Configuration tab.
