10-31

Redundancy Groups

Configuring a Redundancy Group

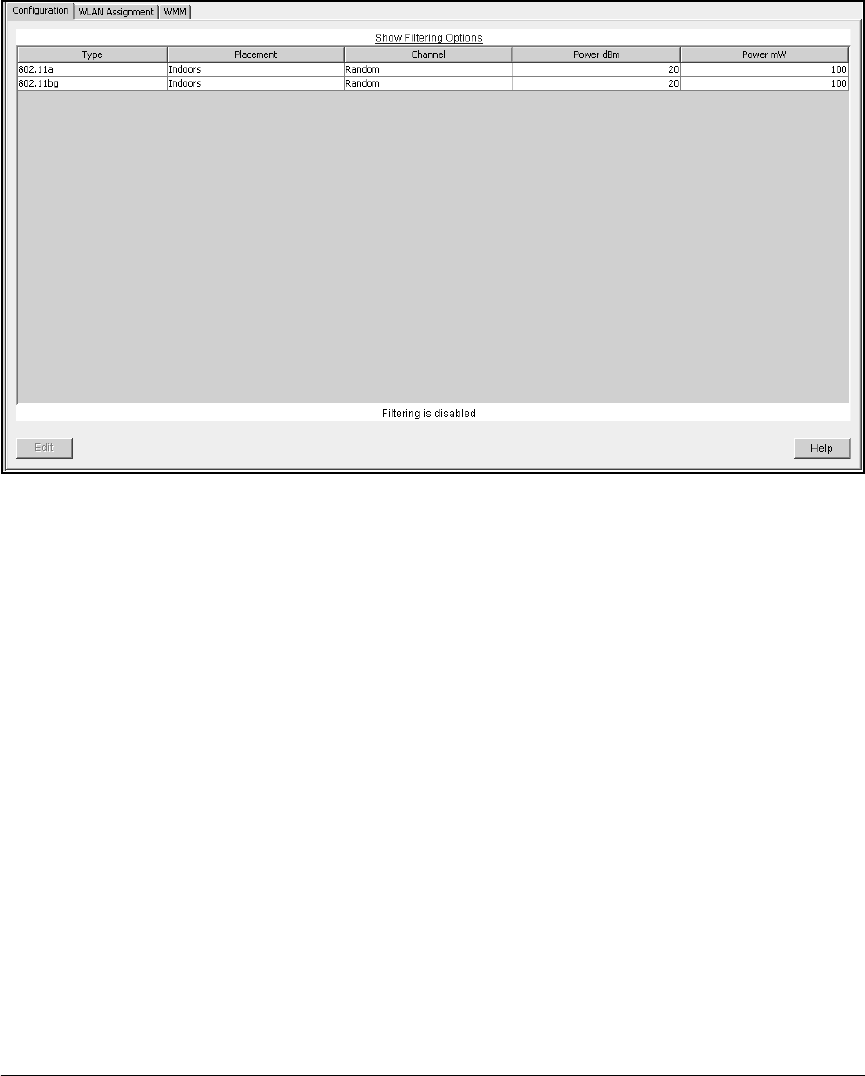

Figure 10-14.Network Setup > Radio Adoption Defaults > Configuration Screen

2. Select a radio type and click the Edit button. The Configuration screen is

displayed. (See Figure 10-15.)
