10-32

Redundancy Groups

Configuring a Redundancy Group

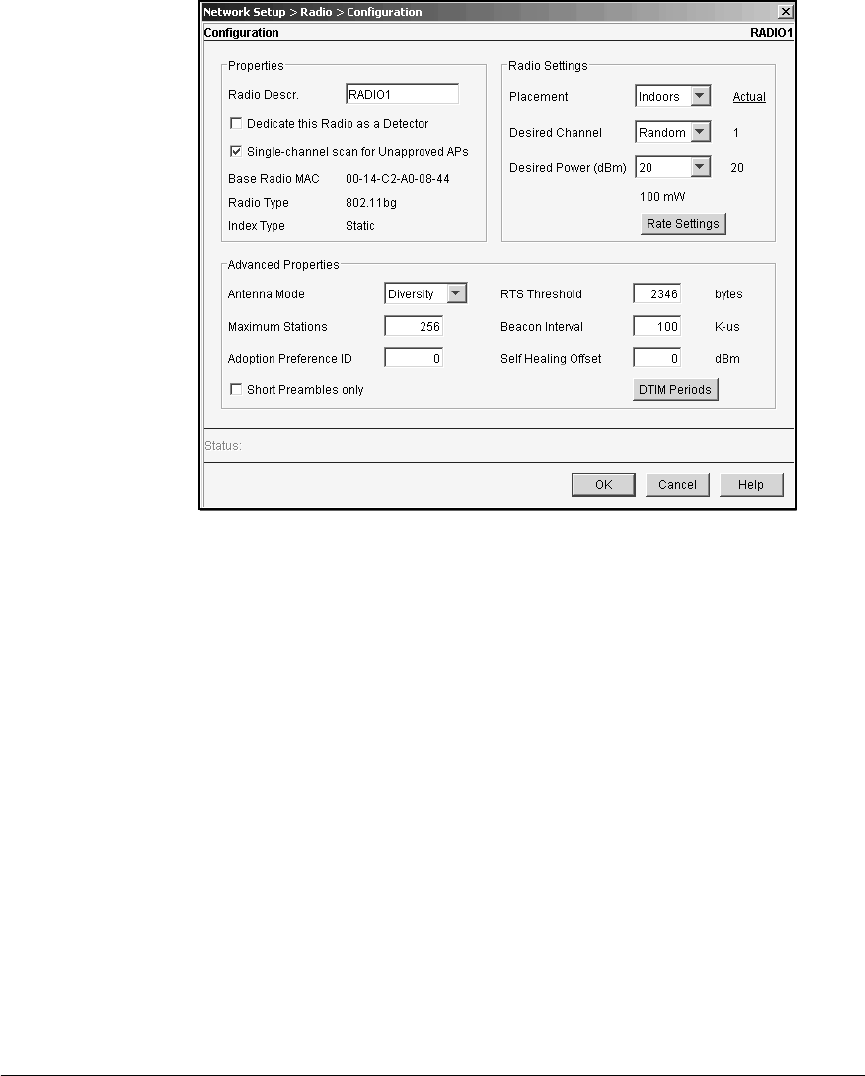

Figure 10-15.802.11bg Configuration Screen

3. Under Advanced Properties, in the Adoption Preference ID field, enter a

preference ID, and then click the OK button.

4. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.

To force another module to adopt a particular RP, change its radio preference

ID to match the ID on that second module, as explained in “Configuring

Advanced Properties for a Particular Radio” on page 3-32 in Chapter 3: Radio

Port Configuration.
