11-12

RADIUS Server

RADIUS Authentication

Configuring the Local RADIUS Database

You must complete the following tasks to configure the local database:

1. Create groups, which define policies for users.

2. Add user accounts to the group.

Creating a Group. A group defines policies on the Wireless Edge

Services xl Module’s internal RADIUS database, including:

■ the dynamic VLAN for authenticated users in this group

■ when users in this group are allowed to connect to the network

You can create two types of groups:

■ a normal group

■ a guest group, which only allows temporary guest accounts

To configure a group, complete these steps:

1. Select Network Setup > Radius Server and click the Groups tab.

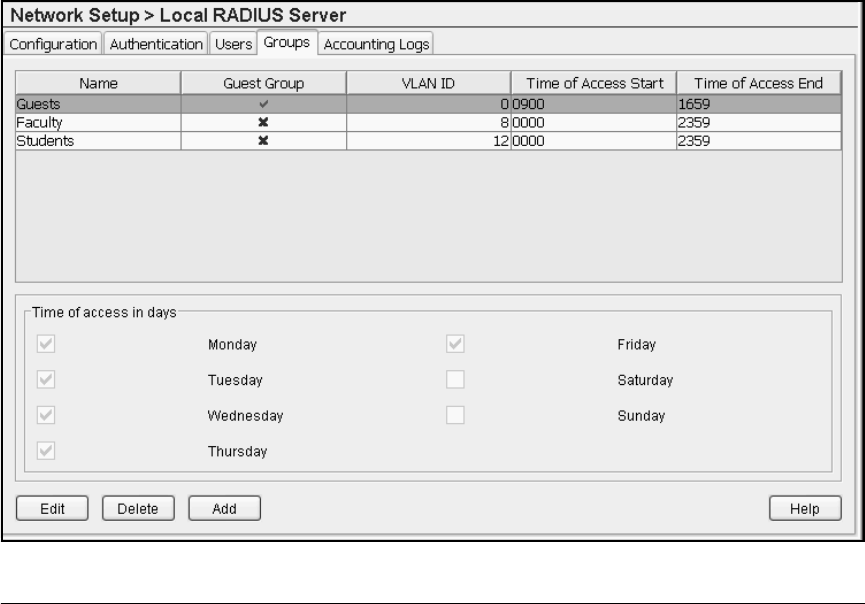

Figure 11-4. Configuring RADIUS Server Groups
