11-17

RADIUS Server

RADIUS Authentication

Note By default, this password is displayed in plaintext in the Wireless Edge

Services xl Module’s configuration. To learn how to encrypt the password, see

“Password Encryption” on page 2-105 of Chapter 2: Configuring the

ProCurve Wireless Edge Services xl Module.

6. For a guest user, you must specify the period during which the account is

active.

As soon as you check the Guest User box, the OS creates a default period,

which begins at the current time (shown in the Current Switch Date field)

and ends 24 hours after the current time. See Figure 11-7.

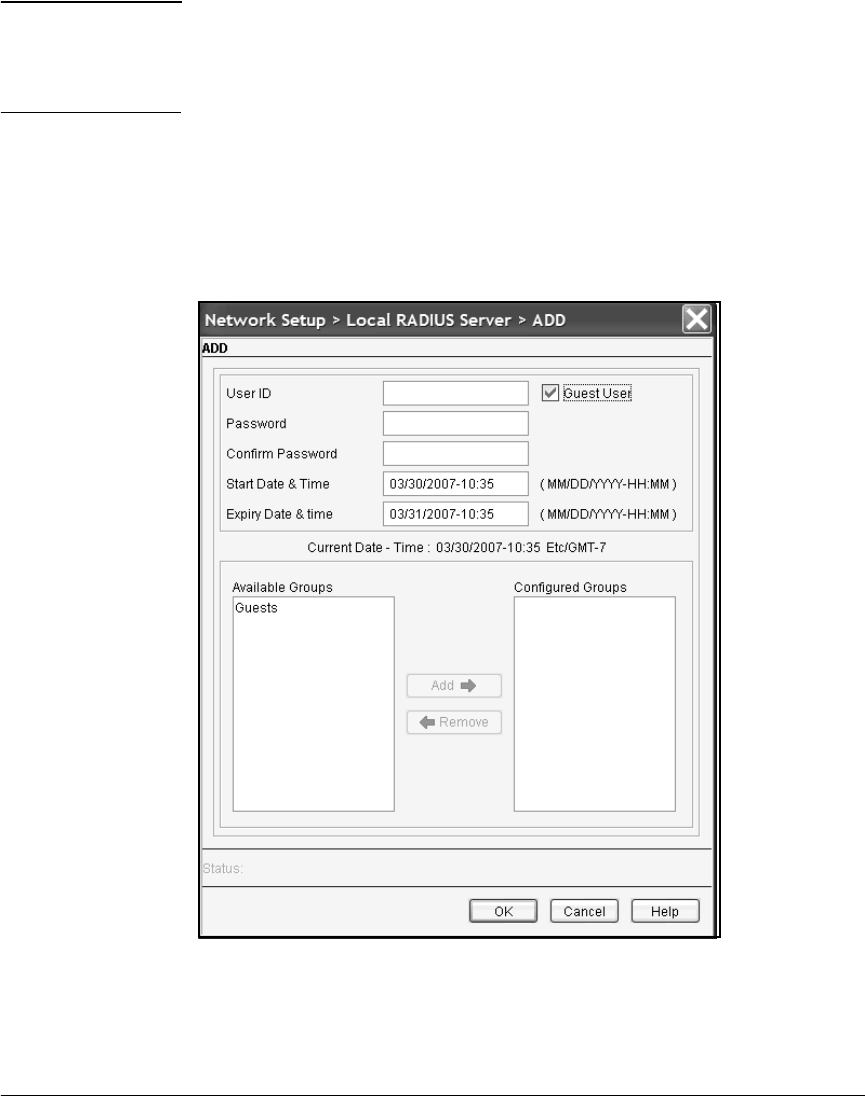

Figure 11-7. Creating a Guest User in the Local RADIUS Database
