11-21

RADIUS Server

RADIUS Authentication

• With the group login filter, the internal RADIUS server checks that the

supplicant is a member of a group that is allowed access.

You must also specify the names of attributes that the RADIUS server

retrieves during these searches, including the password and group

memberships.

To configure LDAP settings, complete these steps:

1. Select Network Setup > Local RADIUS Server and click the Authentication

tab.

2. From the Auth Data Source drop-down menu, select ldap.

3. In the LDAP Server Details section, click the Primary tab.

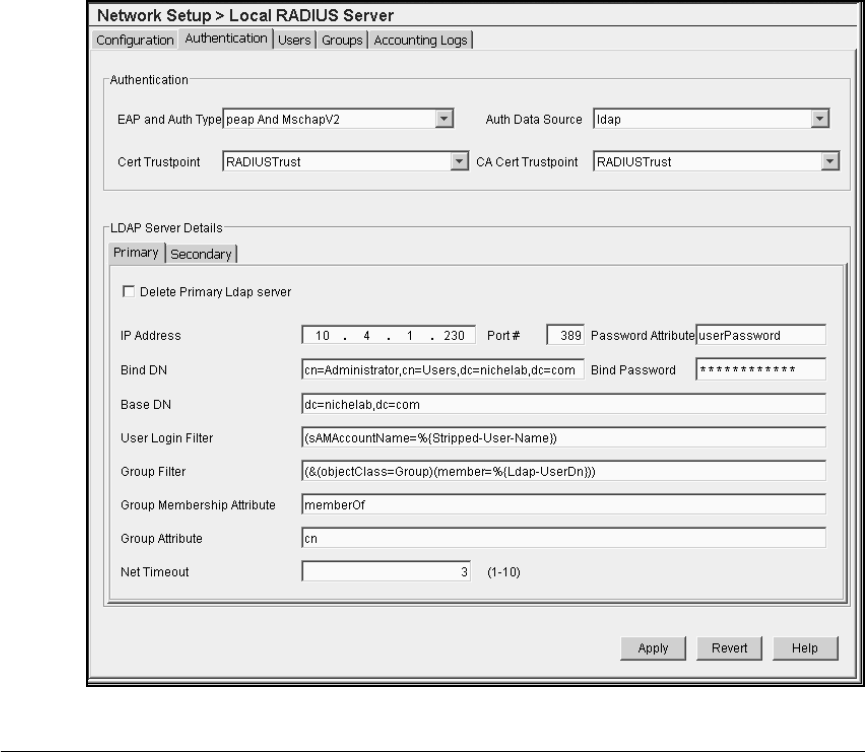

Figure 11-8. Configuring LDAP Settings
