RADIUS Server
RADIUS Authentication
2. Click the Add button, The ADD screen is displayed.

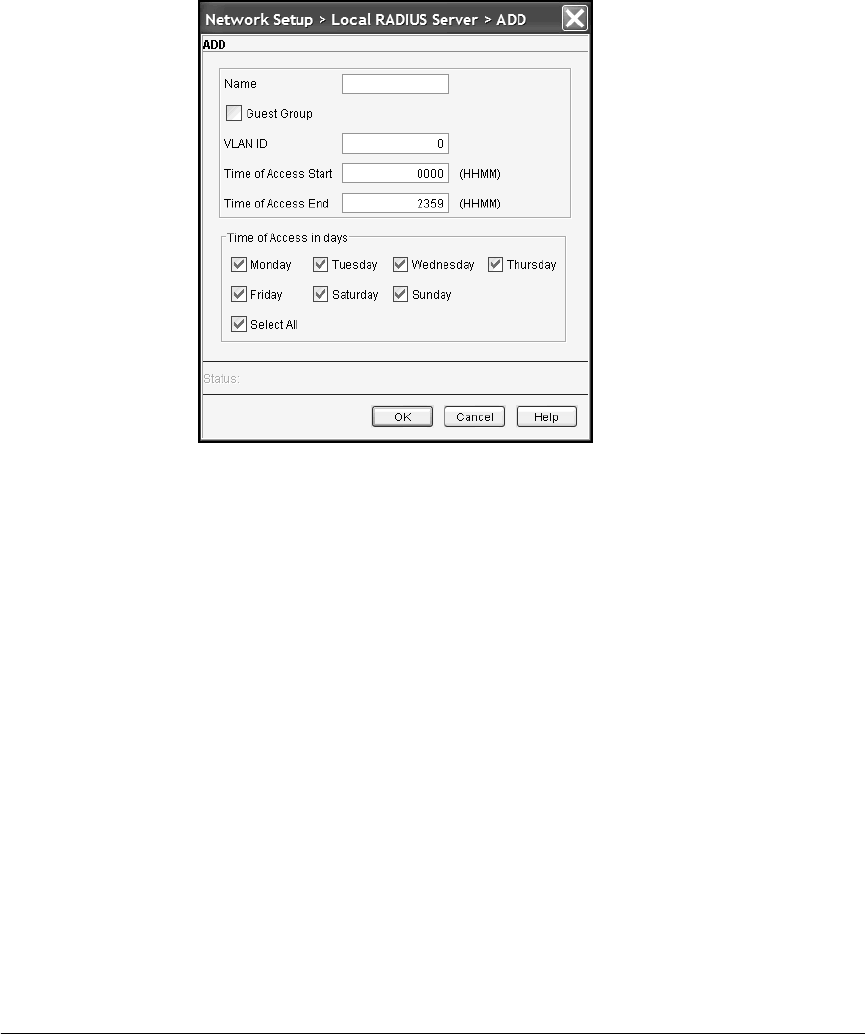

Figure 11-10.Adding a RADIUS Server Group
3. In the Name field, enter a name that matches the name of a group on your
directory server. This is the group that is allowed wireless access; make
sure that all potential wireless users are members. (Or create multiple
groups.)
The name you assign the group must match exactly the group name as
stored on your LDAP server. The LDAP server might use several attributes
to name the group. The Group Attribute field, in the LDAP bind settings,
specifies the attribute that the group name matches. (See step 9 on
page 11-23.)
For example, you specify “cn” for the group attribute. The cn of the group
for wireless users is listed as “Wireless Users” on the directory server. So
you enter “Wireless Users” in the Name field.
4. In the VLAN ID field, enter the dynamic VLAN for users in this group.
If you leave the ID at 0, the Wireless Edge Services xl Module assigns the
user to the static VLAN associated with the user’s WLAN.
