11-28

RADIUS Server

RADIUS Authentication

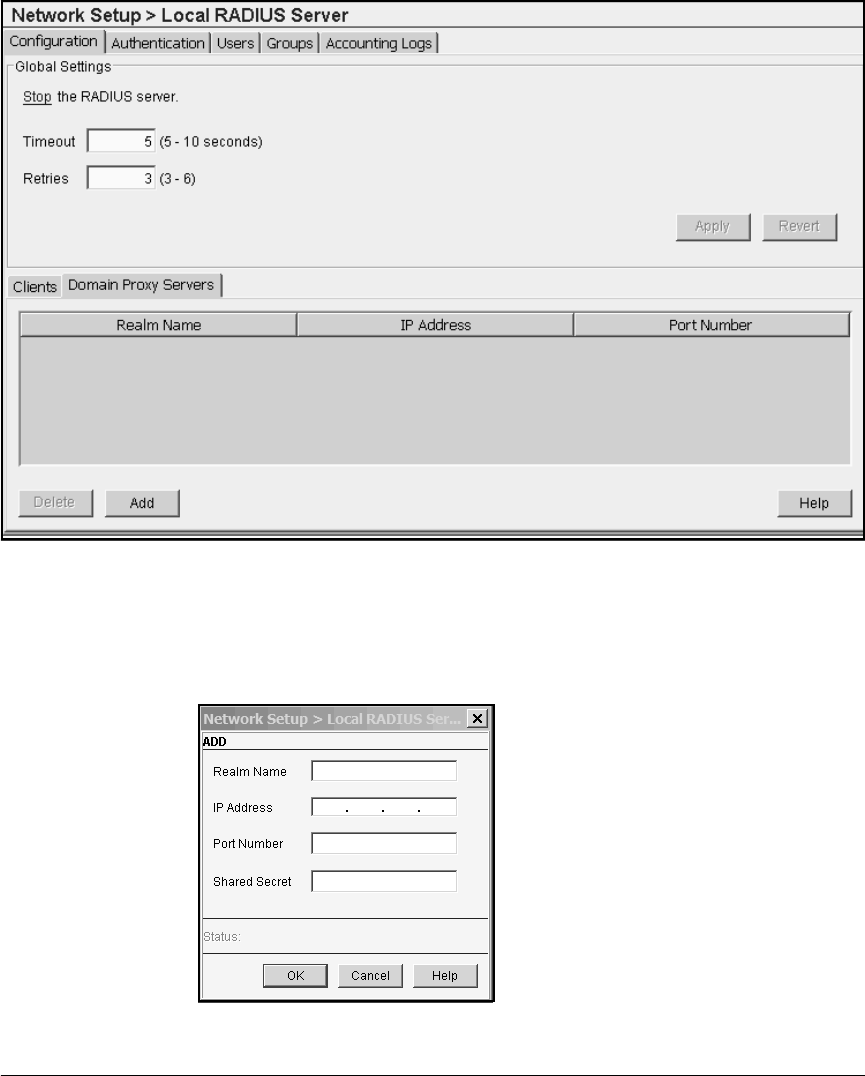

Figure 11-11.Network Setup > Radius Server > Configuration Screen

2. In the lower section of the screen, click the Domain Proxy Servers tab.

3. Click the Add button. The ADD screen is displayed.

Figure 11-12.Adding a Domain Proxy Server
