11-30

RADIUS Server

RADIUS Authentication

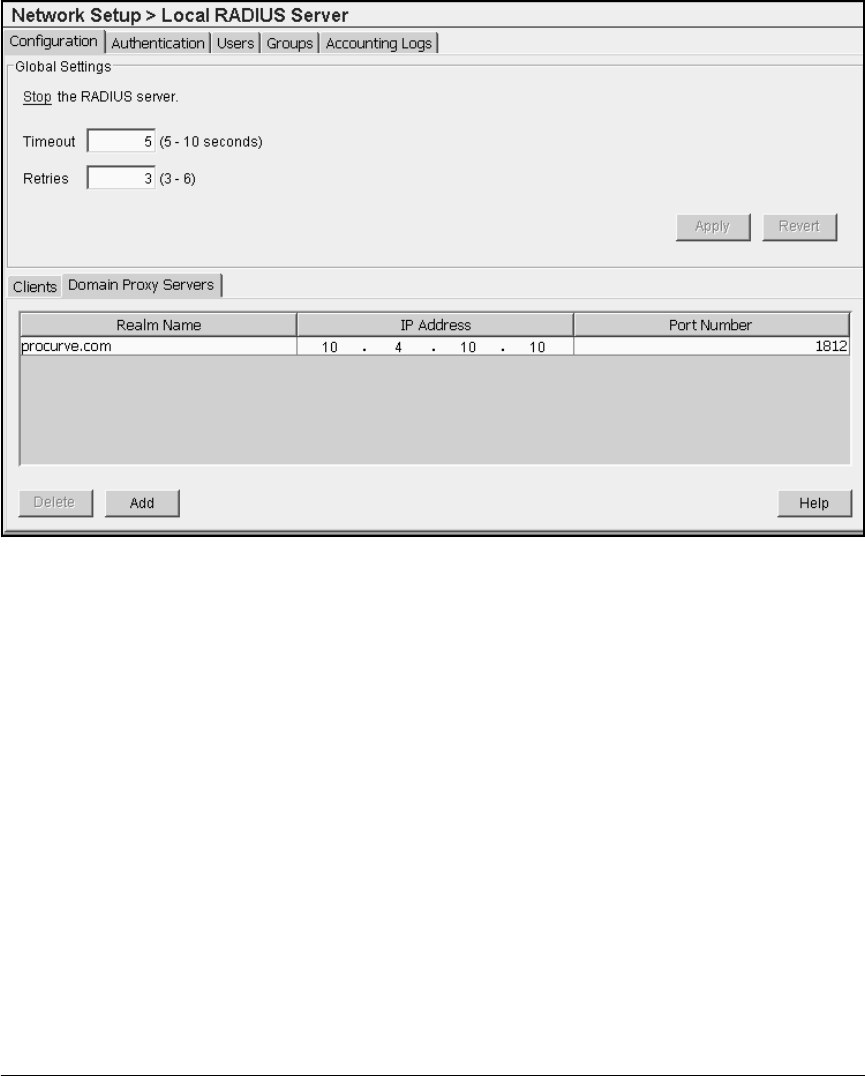

Figure 11-13.Viewing Domain Proxy Servers

8. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.

Specifying Global RADIUS Settings

Global RADIUS settings regulate the Wireless Edge Services xl Module’s

RADIUS server’s communications with proxy RADIUS servers.

To configure these settings, follow these steps:

1. Select Network Setup > Local RADIUS Server > Configuration.

2. In the Timeout field, specify how long, in seconds, the module should wait

for a response to a request to a domain proxy server.

The default timeout is 5 seconds, and the valid range is from 5 to 10

seconds. You might select a longer time for a busy network.
