11-32

RADIUS Server

RADIUS Authentication

If the client has more than one IP address, make sure to specify the

address that it includes in RADIUS requests.

5. In the Shared Secret field, enter the client’s password.

Of course, you must specify this same password when you configure the

client device to query this module.

6. Click the OK button. The client is displayed in the Network Setup > Radius

Server > Configuration screen under the Clients tab.

7. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.

Starting and Stopping the RADIUS Server

You must restart the RADIUS server for configuration changes to take effect.

The Web browser interface automatically asks you to restart the server

whenever you make a configuration. You can also manually stop and start the

server from the Network Setup > Radius Server > Configuration screen.

The Global Settings section indicates whether the server is running:

■ “Start the RADIUS server”—The server is currently disabled.

■ “Stop the RADIUS server”—The server is currently enabled.

To change the RADIUS server’s status, click link portion of the indication. To

disable the server, click the Stop link. To re-enable a stopped server, click the

Start link.

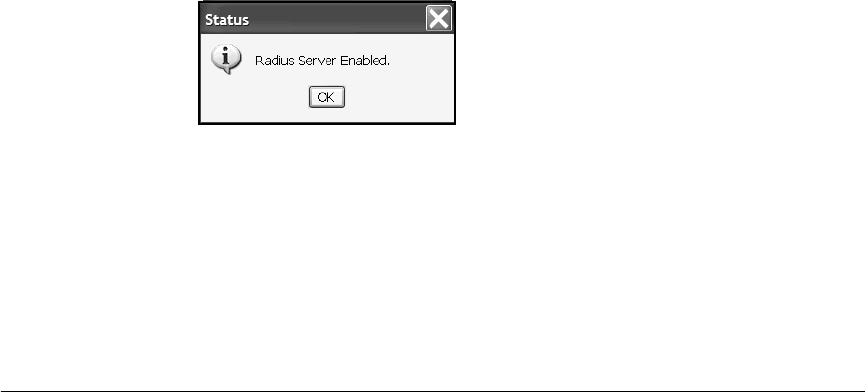

In either case, a screen is displayed, informing you of the change in status.

Figure 11-15.Restarting the

RADIUS Server

Click the OK button to close the screen, remembering to save your configura-

tion by clicking the Save link.
