11-34

RADIUS Server

RADIUS Authentication

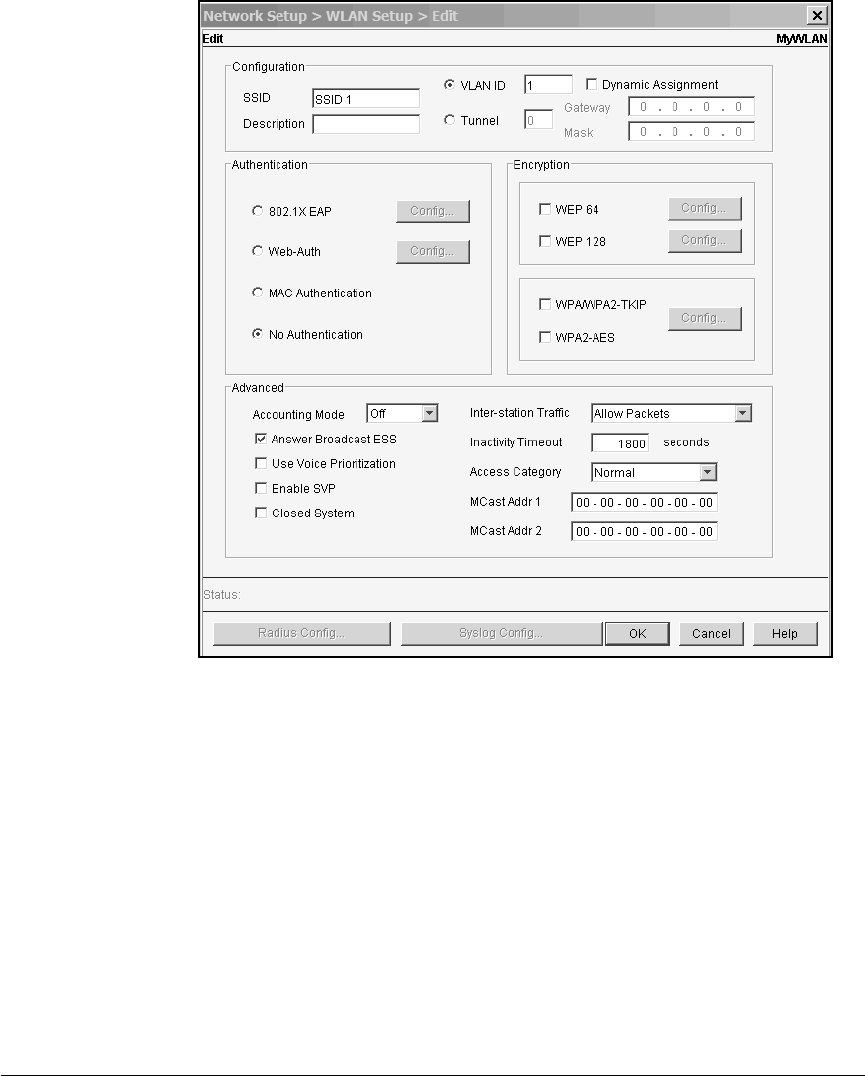

Figure 11-16.WLAN Edit Screen

3. If you have configured the RADIUS server to place users in dynamic

VLANs, check the Dynamic Assignment box.

4. Configure other WLAN settings as described in Chapter 4: Wireless Local

Area Networks (WLANs).

5. In the Authentication section, select 802.1X EAP, Web-Auth, or MAC Authen-

tication.

6. Click the RADIUS Config… button at the bottom of the screen. The Radius

Configuration screen is displayed.
