11-35

RADIUS Server

RADIUS Authentication

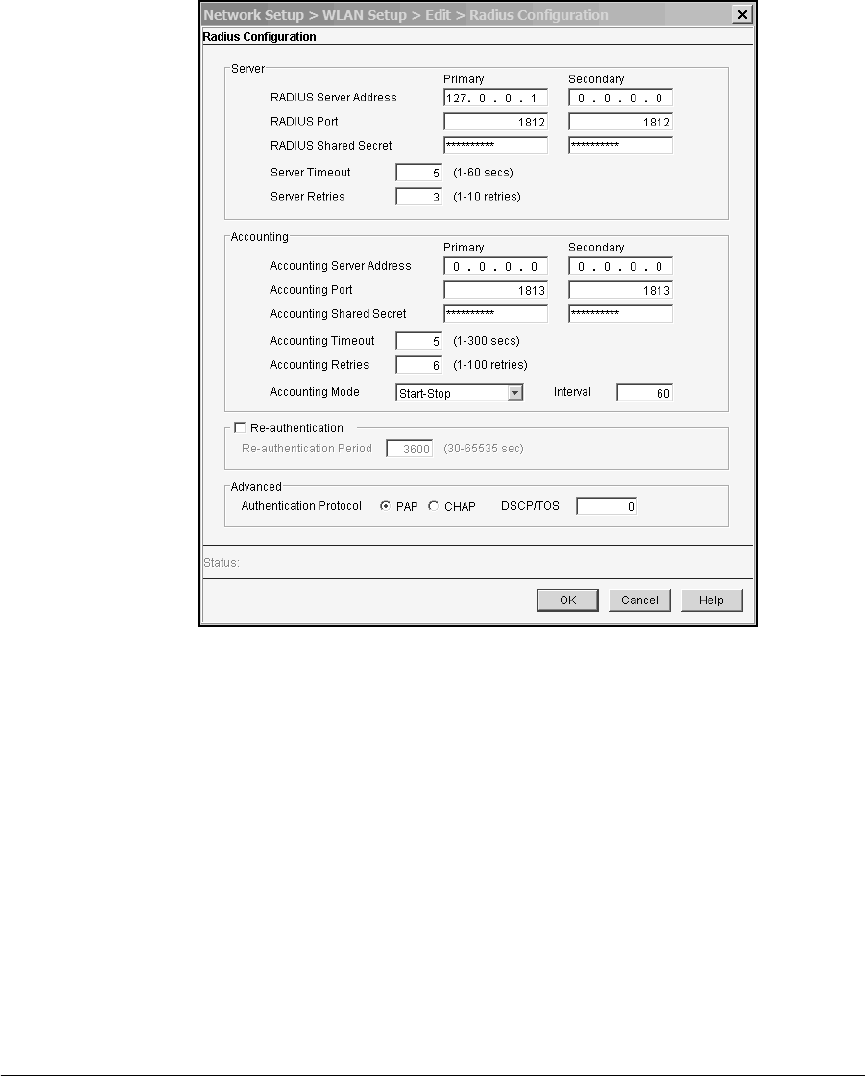

Figure 11-17.Configuring a WLAN to Require Authentication to the

Internal RADIUS Server

7. Specify 127.0.0.1 in the primary RADIUS server’s RADIUS Server Address

field.

8. Do not enter anything in the RADIUS Shared Secret field.

By default, the module can communicate with the internal server. If you

enter a string in this field, the module’s internal server will no longer work

on this WLAN. If you do change the secret, you can fix the problem in one

of two ways:

• Clear the RADIUS Shared Secret field and click OK. The secret returns

to the default.

• Configure the loopback interface (127.0.0.1) as a client for the internal

RADIUS server. Specify the new secret for the client. See “Adding

RADIUS Clients” on page 11-31.
