11-39

RADIUS Server

RADIUS Accounting

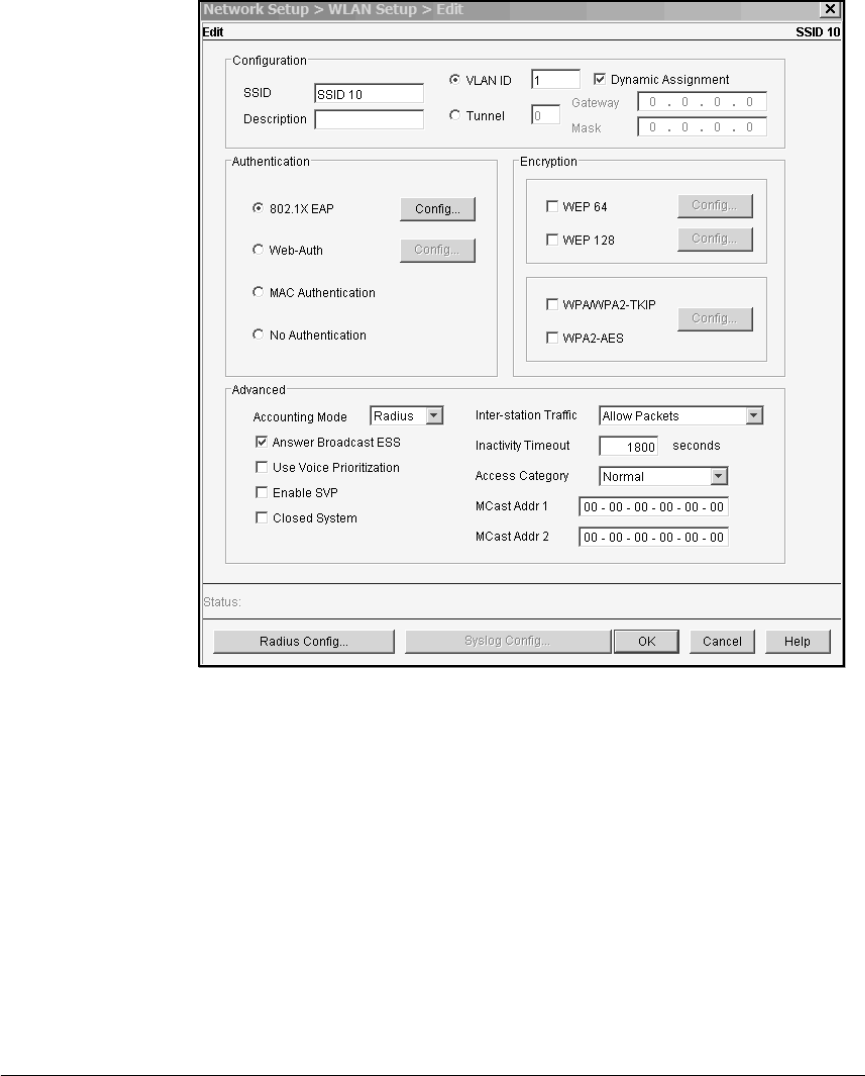

Figure 11-18.Enabling RADIUS Accounting for a WLAN

3. In the Advanced section, in the Accounting Mode field, use the drop-down

menu to select Radius.

4. Click the Radius Config button. The Radius Configuration screen is dis-

played.
