11-40

RADIUS Server

RADIUS Accounting

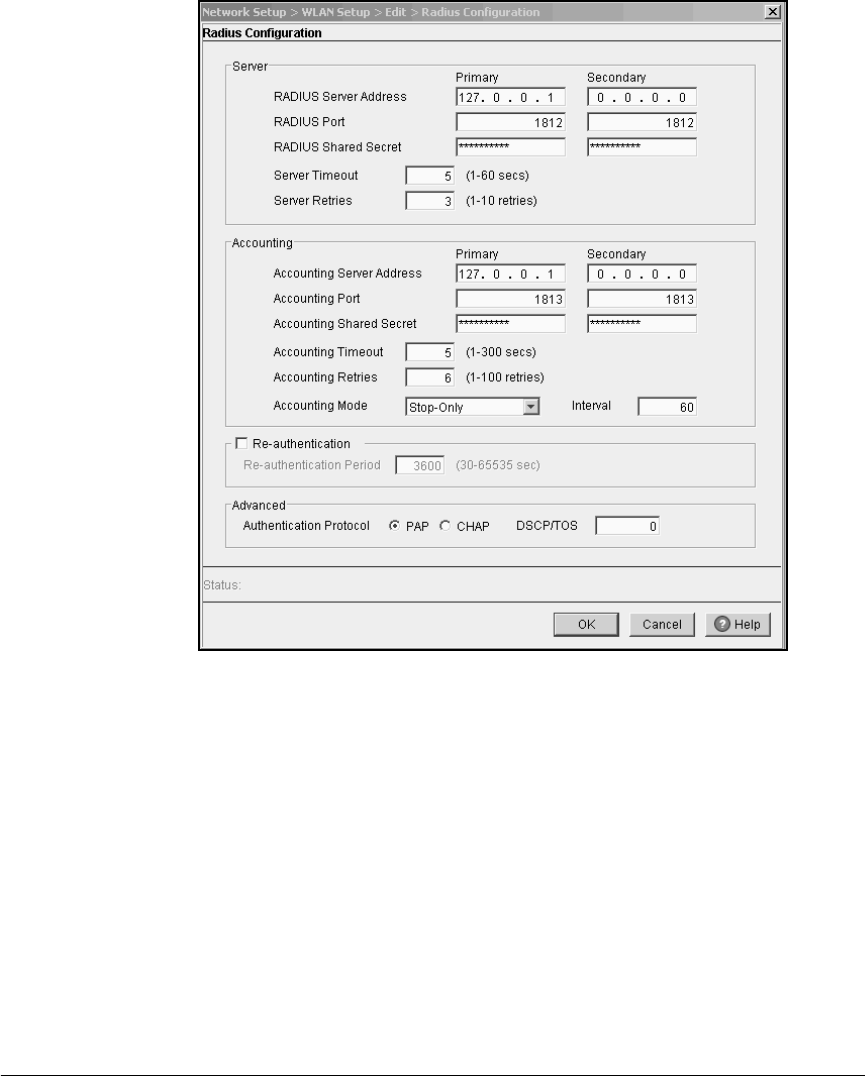

Figure 11-19.Specifying the Accounting Server in the Radius Configuration Screen

To enforce RADIUS accounting, the WLAN must use 802.1X authentica-

tion, Web-Auth, or MAC authentication for the Authentication mode.

5. Configure settings for the primary accounting server in the Primary

column of the Accounting section.

a. Specify the server’s IP address in the Accounting Server Address field.

To use the Wireless Edge Services xl Module’s internal server for

accounting, enter 127.0.0.1. You can use the internal RADIUS server

for accounting both when the internal RADIUS server is the authen-

tication server and when an external server is the authentication

server.

b. Leave the default port: 1813.
