12-8

Configuring Tunnels with Generic Routing Encapsulation

Configuring GRE Tunnels

b. In the Gateway and Mask fields, specify the default gateway and

subnet mask for the tunnel subnetwork.

This IP address should be the IP address of the remote endpoint on

the tunnel subnetwork.

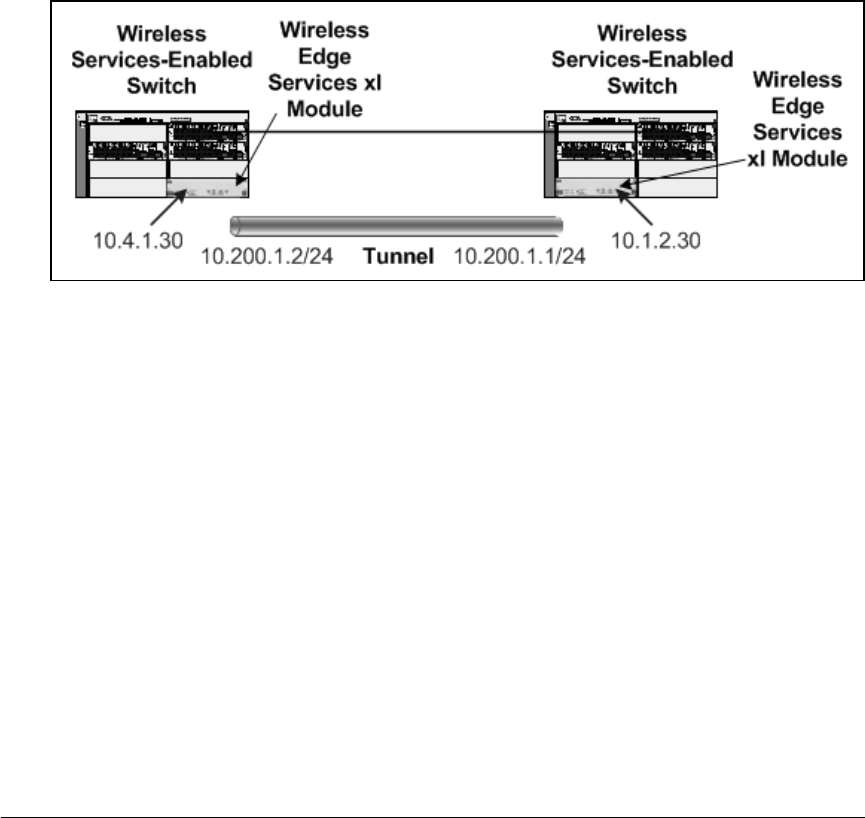

In Figure 12-4, for example, the tunnel interface on the local module

has the IP address of 10.200.1.2/24, and the tunnel destination is

10.1.2.30. The IP address you enter for the gateway is not the tunnel

destination, but the remote endpoint’s address on the 10.200.1.0/24

network—in this case, 10.200.1.1.

Figure 12-4. Example of a GRE Tunnel

4. Click the OK button. The Network Setup > WLAN Setup > Configuration

screen shows that the WLAN is mapped to the tunnel interface.
