12-10

Configuring Tunnels with Generic Routing Encapsulation

Configuring GRE Tunnels

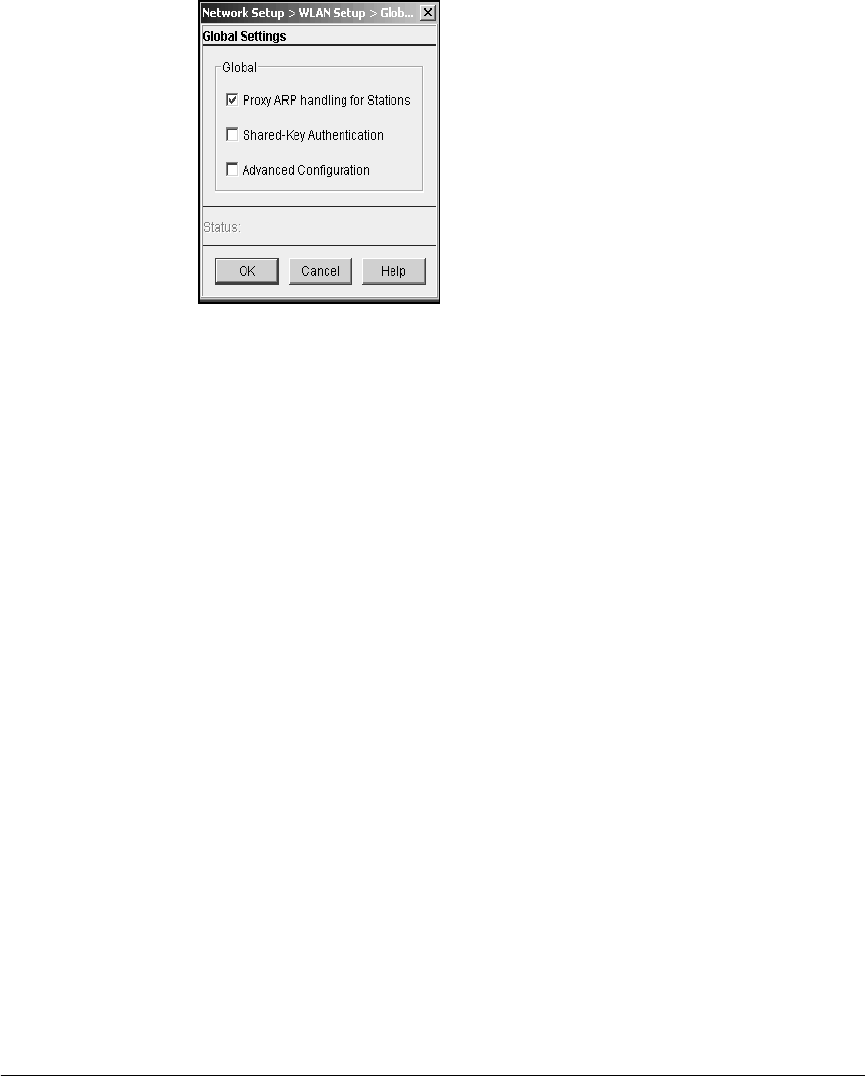

Figure 12-6. Global WLAN Settings Screen

3. Check the Proxy ARP handling for Stations box.

4. Click the OK button.

5. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.

Configuring IP Settings for Stations in a WLAN Mapped

to a Tunnel

Follow these guidelines to ensure that wireless stations’ traffic reaches its

destination:

■ The stations require an IP address in the tunnel subnetwork.

■ The stations’ default gateway IP address should be the IP address on the

destination device’s tunnel interface.

Typically, wireless stations receive these settings as part of their DHCP

configuration.
