Wireless Network Management
Monitoring the Wireless Network

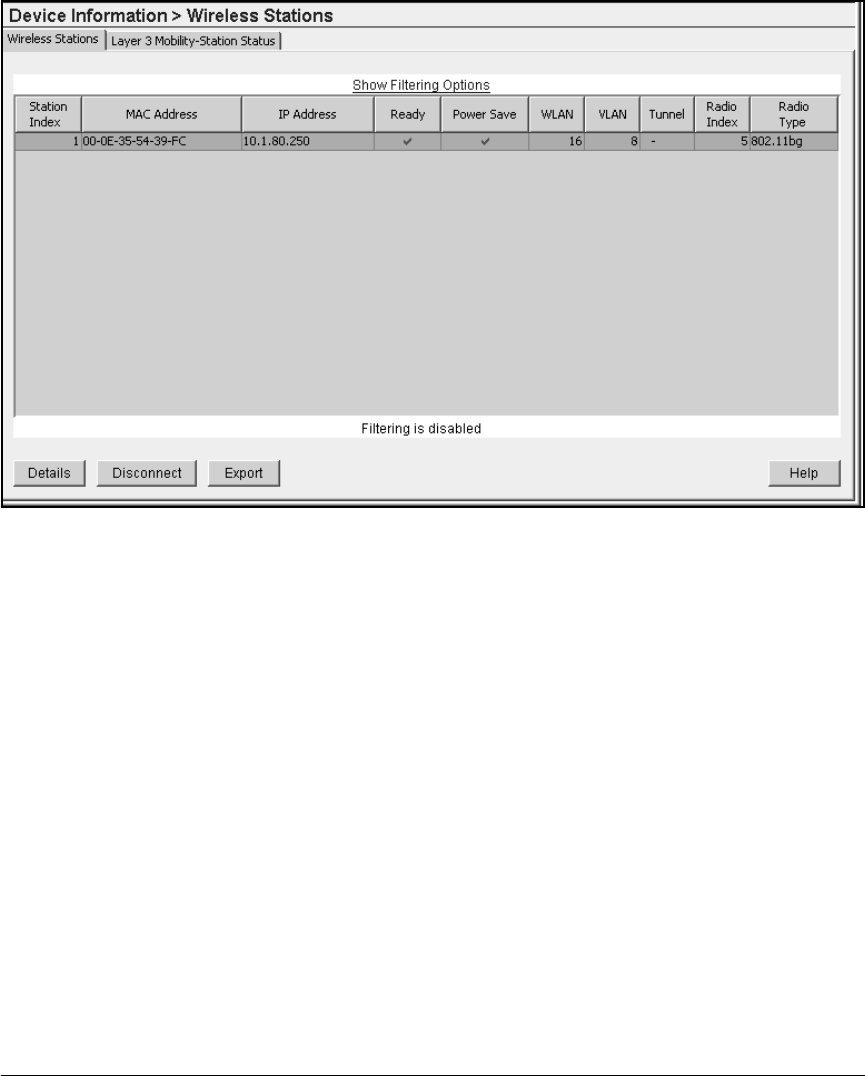

Figure 13-1. Viewing Wireless Station Associations
The screen displays this information for each station associated with one of
the WLANs on this module:
■ Station Index—Stations are listed in the order in which they associated.
■ MAC Address—Each station’s Media Access Control (MAC) address is
listed.
■ IP Address—A station must receive an IP address to receive complete
network connectivity.
■ Ready—A green check mark indicates that the station has completely
authenticated and associated to a WLAN. A red X reveals that the station
cannot yet send data, usually because it failed to authenticate.
■ Power Save—A station that uses power save turns off the wireless con-
nection except when actively sending or receiving data. The Wireless Edge
Services xl Module tracks these stations and ensures that packets are
correctly buffered for them. A green checkmark indicates that the station
is currently in power save mode.
