13-8

Wireless Network Management

Monitoring the Wireless Network

Viewing Details about a Wireless Station

If you want to view more information about a particular station’s capabilities

and connection, select that station on the Device Information > Wireless

Stations screen, and then click the Details button. The Details screen is

displayed. (See Figure 13-4.)

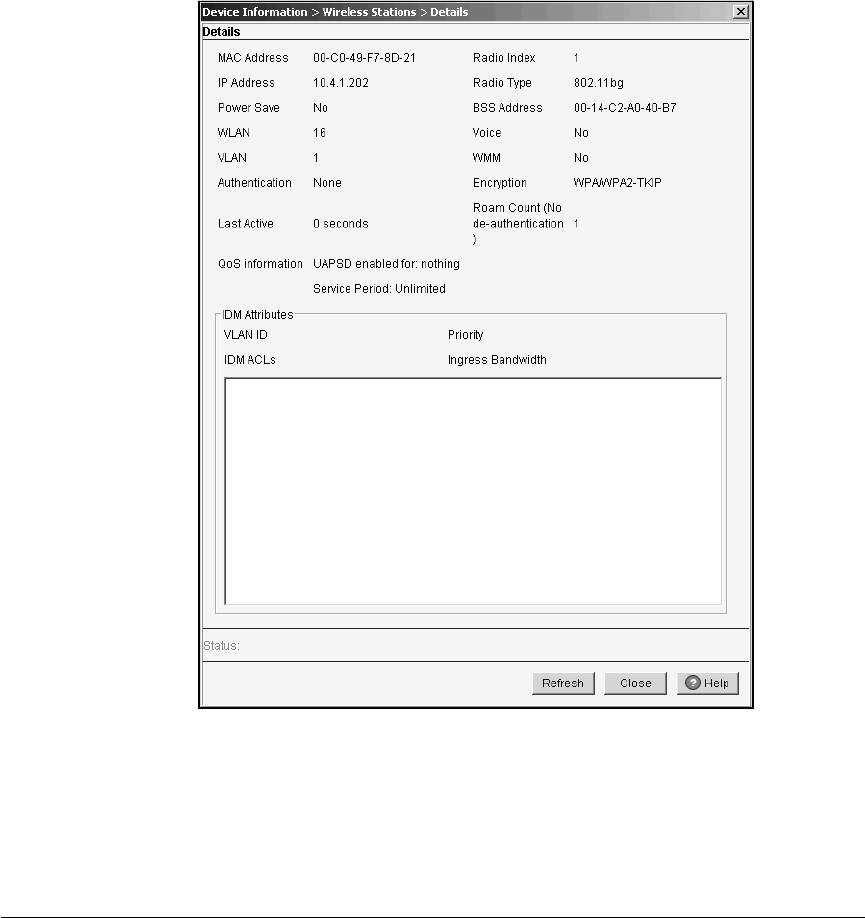

Figure 13-4. Viewing Detailed Information about a Station
