Wireless Network Management
Monitoring the Wireless Network

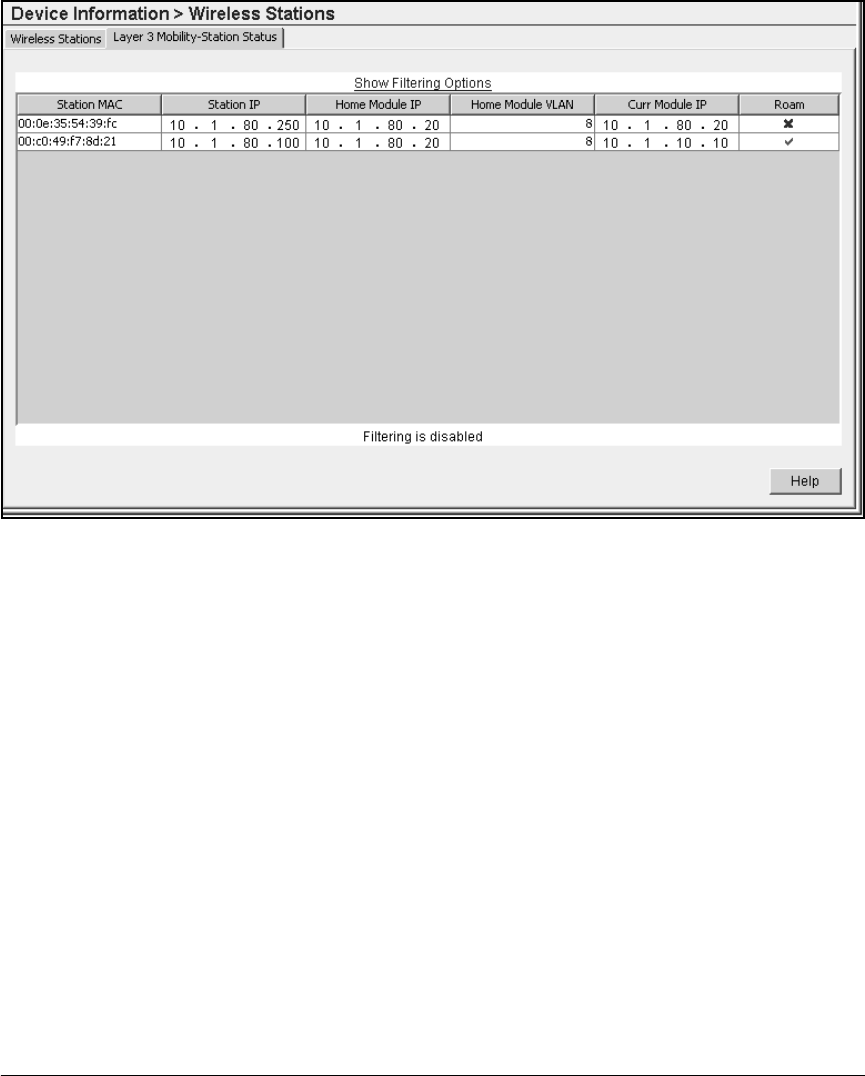

Figure 13-5. Device Information > Wireless Stations > Layer 3 Mobility-Station
Status
The screen displays the following information for all Layer 3 mobility domain
stations:
■ Station MAC—station MAC address
■ Station IP—station IP address
■ Home Module IP—the IP address of the module responsible for forwarding
the station’s traffic into the wired network
■ Home Module VLAN—the static VLAN ID for the WLAN on the home
module (HM)
■ Curr Module IP—the IP address of the module to which the station is
currently associated
■ Roam—This column tracks Layer 3 roams. The station is considered to be
in a roaming state (green check mark) if its current module (CM) differs
from its HM.
