Wireless Network Management
Monitoring the Wireless Network
Wireless Statistics for Stations
Like the Device Information > Wireless Stations screen, the Device Information >
Wireless Statistics screen lists every station associated with RPs adopted by
the Wireless Edge Services xl Module. However, this screen focuses on activity
on the connection.

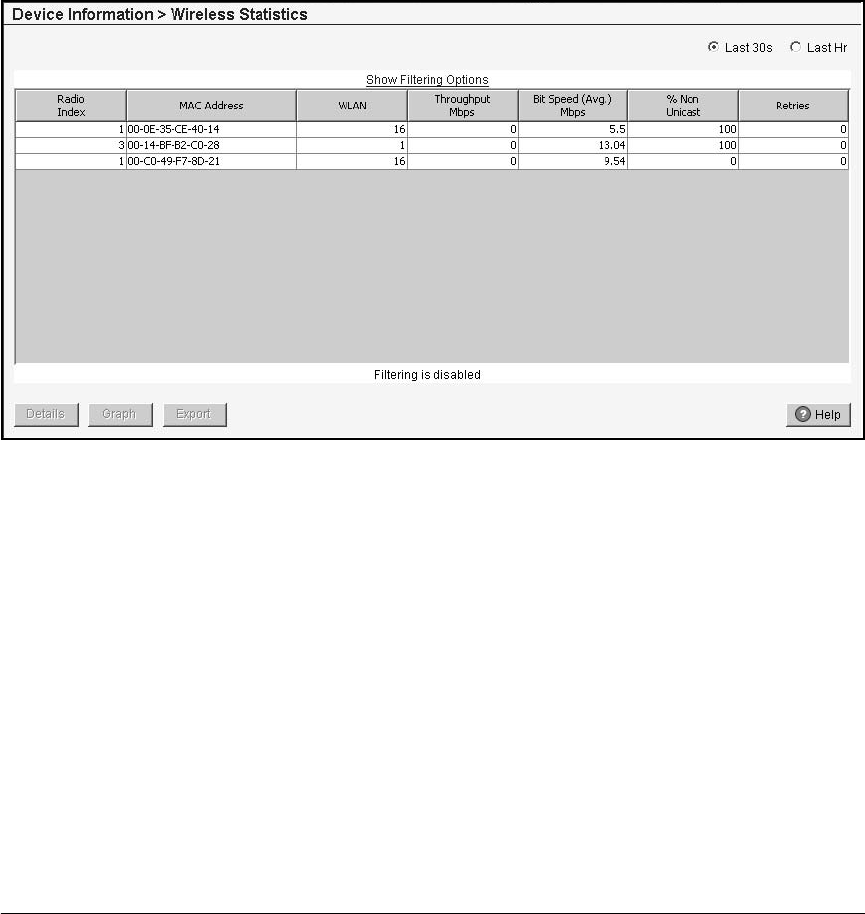

Figure 13-6. Device Information > Wireless Statistics Screen
The first two columns, Radio Index and MAC Address, identify the station
according to the RP radio to which the station connects and the station’s MAC
address. The WLAN column indicates the station’s WLAN.
The next columns display traffic statistics for the connection:
■ Throughput Mbps—the total throughput for data in Mbps
■ Bit Speed (Avg.) Mbps—the average bit speed in Mbps when the station
actually transmits or receives traffic
■ % Non Unicast—the percentage of multicast and broadcast packets (as
compared to total packets)
■ Retries—the number of times that a station must retransmit a packet,
whether due to a collision or another error
Select Last 30s or Last Hr to view the average statistics over either the last 30
seconds or the last hour.
