13-13

Wireless Network Management

Monitoring the Wireless Network

A high number of retries can indicate interference or excessive congestion.

Wireless phones, which send traffic to a multicast address, may have a high

percentage of nonunicast traffic. For traditional stations, a high percentage of

nonunicast traffic can be normal for brief periods—for example, when the

station first associates and requests a DHCP address. You may be able to

decrease the number of frames that stations broadcast by enabling proxy ARP.

(See Chapter 4: Wireless Local Area Networks (WLANs).)

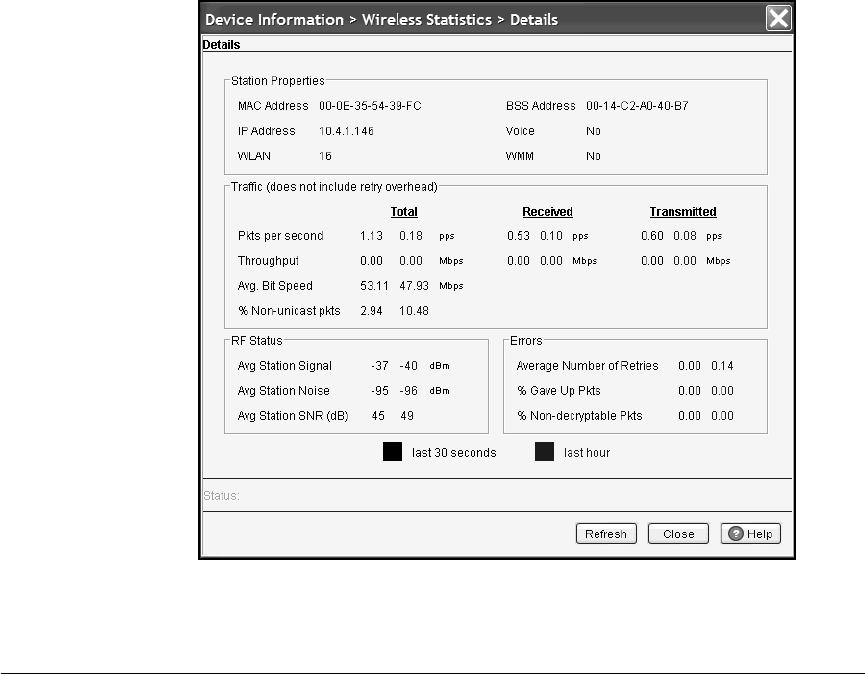

Viewing Detailed Wireless Statistics

For more detailed information about the connection to a particular station,

select that station and click the Details button. The Details screen is displayed.

(See Figure 13-7.)

Figure 13-7. Viewing Detailed Statistics about a Wireless Station
