13-15

Wireless Network Management

Monitoring the Wireless Network

To view this graph, follow these steps:

1. Select Device Information > Wireless Statistics.

2. Select the station (identified by MAC address) from the list.

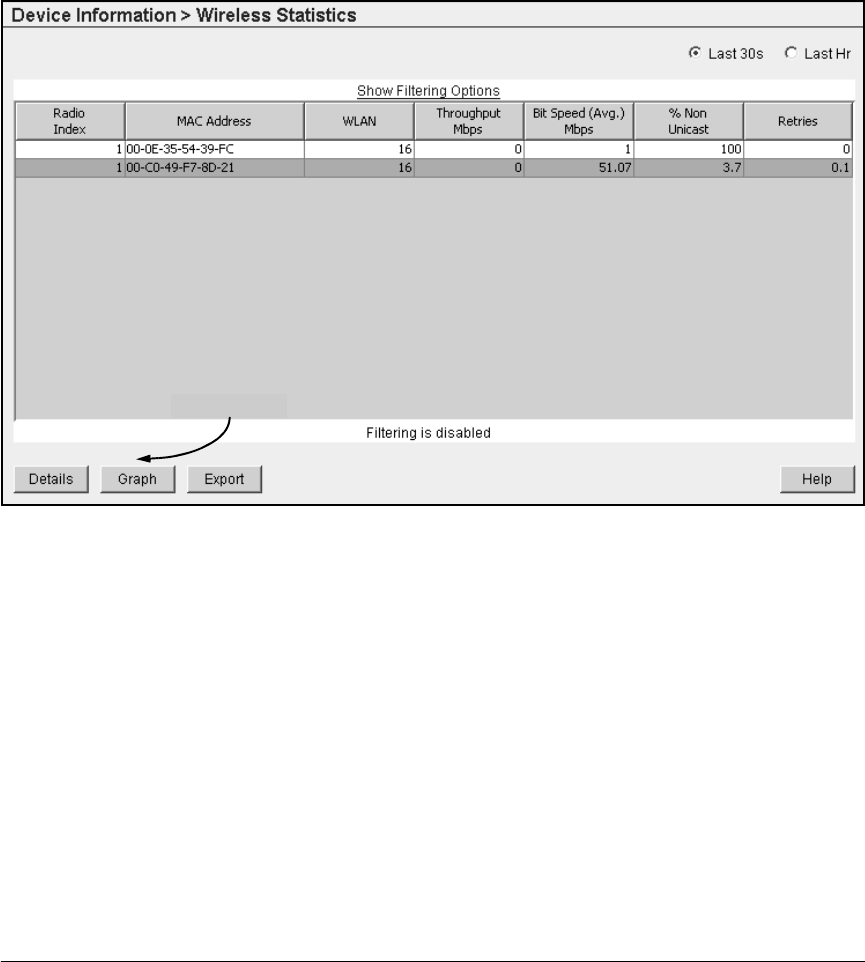

Figure 13-8. Graph Button in the Device Information > Wireless Statistics Screen

3. Click the Graph button.

The Station Statistics screen is displayed.

Graph button
