Wireless Network Management
Monitoring the Wireless Network
The x-axis of the graph displays the time—in Figure 13-10 the time is labelled
in 10 second intervals. The y-axis adds a label that matches the box that you
chose. It also displays the correct units for that type of statistic.
A line that is the same color as the y-axis label plots the statistic as it changes
over time. For example, the graph in Figure 13-10 shows this station’s total
throughput, which experienced a spike just before 15:00.
You can select more than one box and compare statistics against each other.
For example, Figure 13-10 compares total throughput to the average bit speed.
As you can see, the station’s bit speed averages about 50 Mbps—near the 54
Mbps theoretical data rate. However, the station’s throughput is actually much
lower. The lines are distinguished by color, as indicated in the legend below
the x-axis.
You can select a maximum of four boxes at once.
When you have finished viewing the graph, click the Close button.
Radio Statistics
The Wireless Edge Services xl Module stores information about the wireless
network activity on each RP radio. To view these statistics, select Network
Setup > Radio and click the Statistics tab.

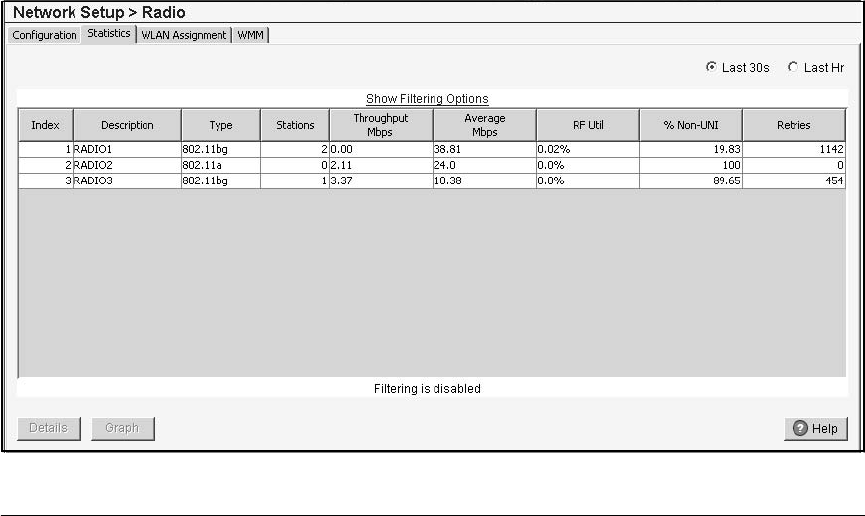

Figure 13-11.Network Setup > Radio > Statistics Screen
