Wireless Network Management

Monitoring the Wireless Network

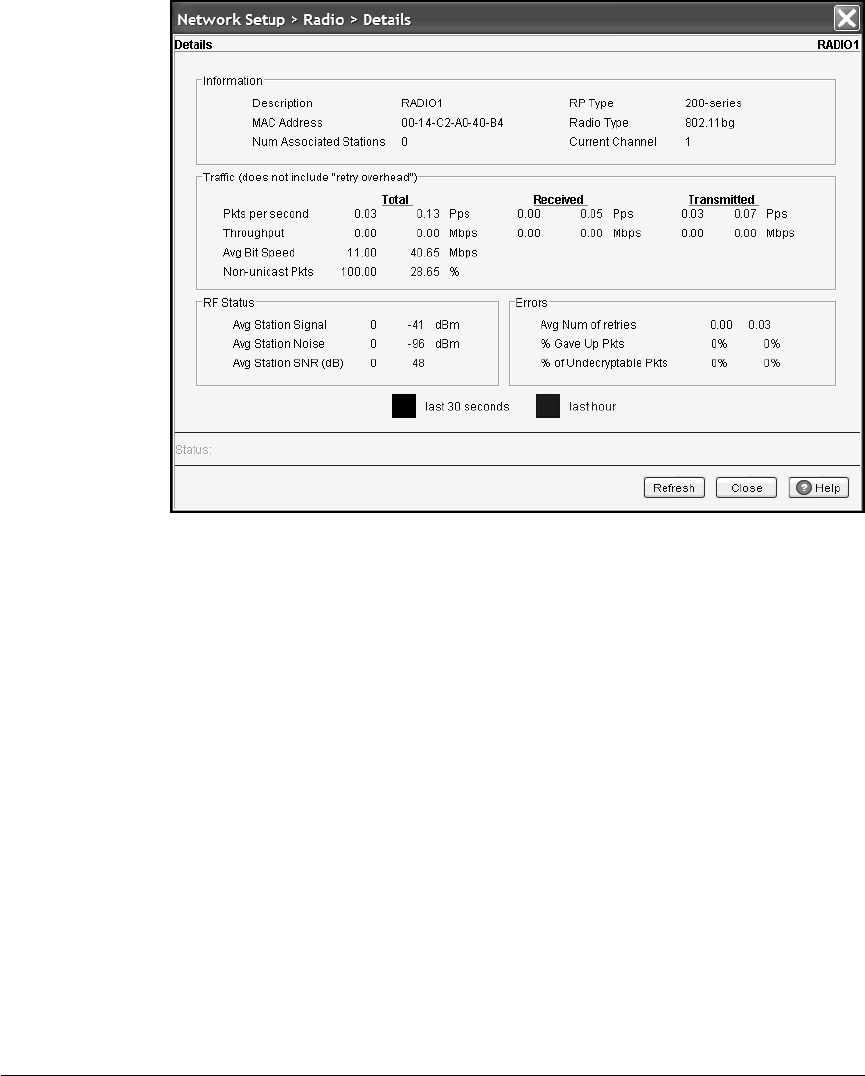

Figure 13-12.Radio Statistics Details

The Information section describes this radio and shows the number of stations

currently associated to it. You should check the Current Channel listing; if the

radio is configured with a manual channel but currently uses a different

channel, the channel number is listed in red.

On the Details screen, statistics for wireless traffic are broken down into

received and transmitted traffic.

You can view the average status of the wireless medium or all stations

connected to this radio under RF Status:

■ Avg Station Signal (dBm)—average signal level detected for all stations

associated to the radio

■ Avg Station Noise (dBm)—average background noise in the wireless cell

■ Avg Station SNR (dBm)—average SNR for all stations associated to the radio
