Wireless Network Management

Monitoring the Wireless Network

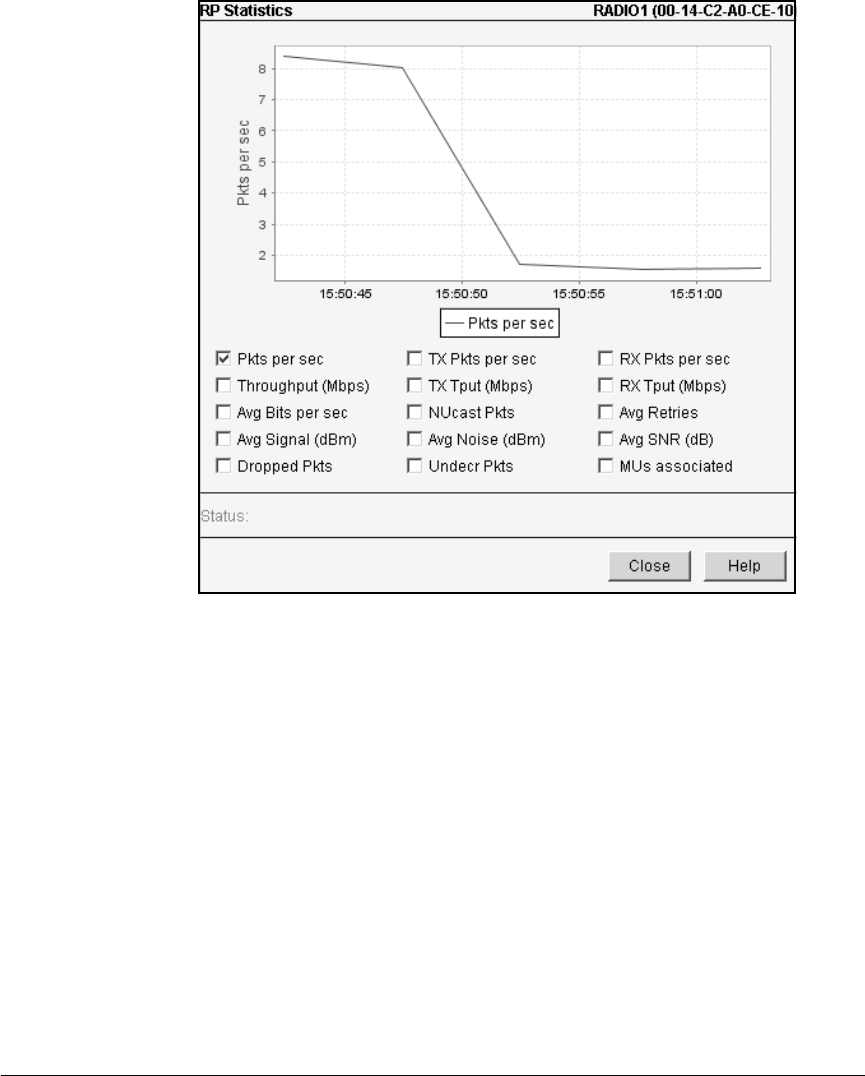

Figure 13-14.RP Statistics Graph

The RP Statistics screen displays the radio’s name and MAC address in the

upper right corner.

To generate a graph, you must select the statistic that you want to track.

(Initially, the graph shows packets per second.) You can choose any of the

statistics displayed in the Details screen for radio statistics. The statistics apply

to all stations associated to the radio. Refer to “Viewing Detailed Radio

Statistics” on page 13-19 for more information on a statistic.

You can choose:

■ Pkts per sec—total packets transmitted and received by this radio per

second

• TX Pkts per sec—packets transmitted by this radio per second

• RX Pkts per sec—packets received by this radio per second
