Wireless Network Management

Monitoring the Wireless Network

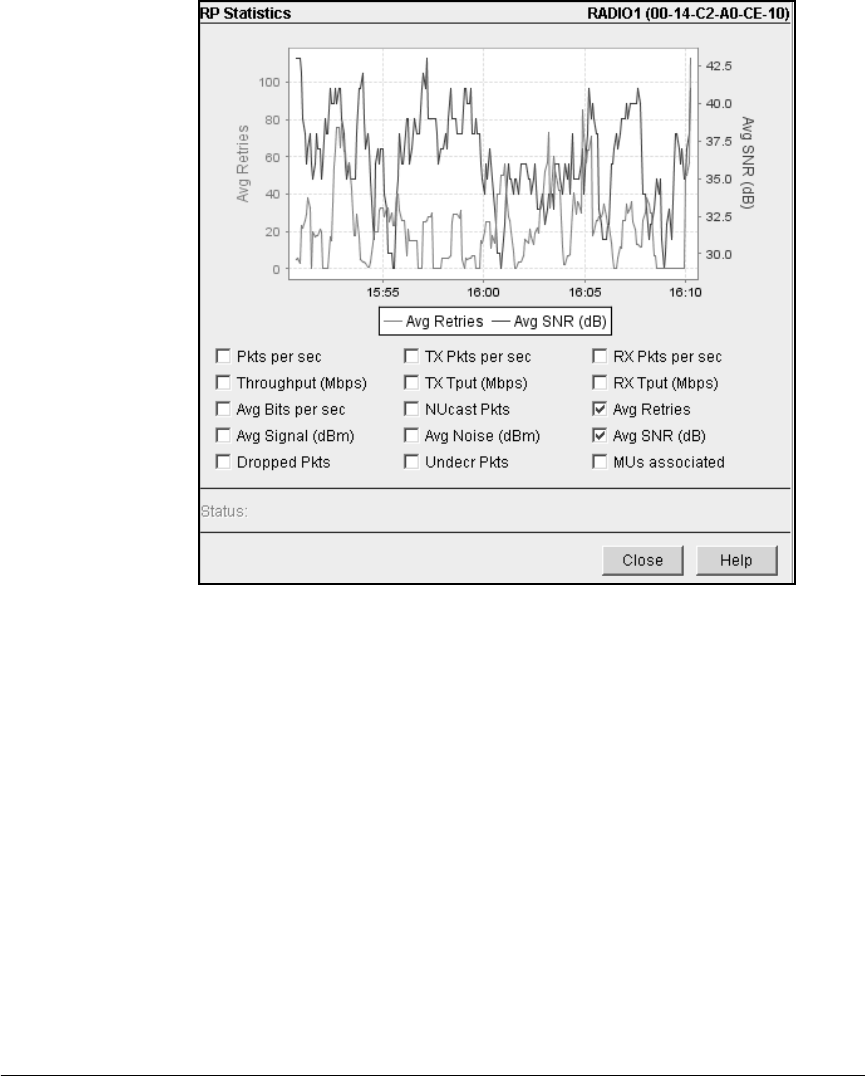

Figure 13-15.Comparing RP Statistics

The x-axis of the graph displays the time—in Figure 13-15, marked at 5 second

intervals. The y-axis adds a label that matches your choice. It also displays the

correct units for that type of statistic.

A line that is the same color as the y-axis label plots the statistic as it changes

over time. You can select more than one box and compare statistics against

each other. For example, Figure 13-10 compares average retries and average

SNR. The lines are distinguished by color, as indicated in the legend below the

x-axis.

You can select a maximum of four boxes at once.

When you have finished viewing the graph, click the Close button.
