13-27

Wireless Network Management

Monitoring the Wireless Network

■ Throughput Mbps—the total throughput for all data transmitted in the

WLAN in Mbps

■ Bit Speed (Avg.) Mbps—the average bit speed for all data transmitted in the

WLAN in Mbps

■ % Non Unicast—the percentage of multicast and broadcast packets (as

compared to total packets)

■ Retries—the number of times that all stations in the WLAN must retrans-

mit a packet, whether due to a collision or another error

Viewing Traffic Statistics for the WLAN

The Network Setup > WLAN Setup > Statistics screen includes a Module Statistics

button.

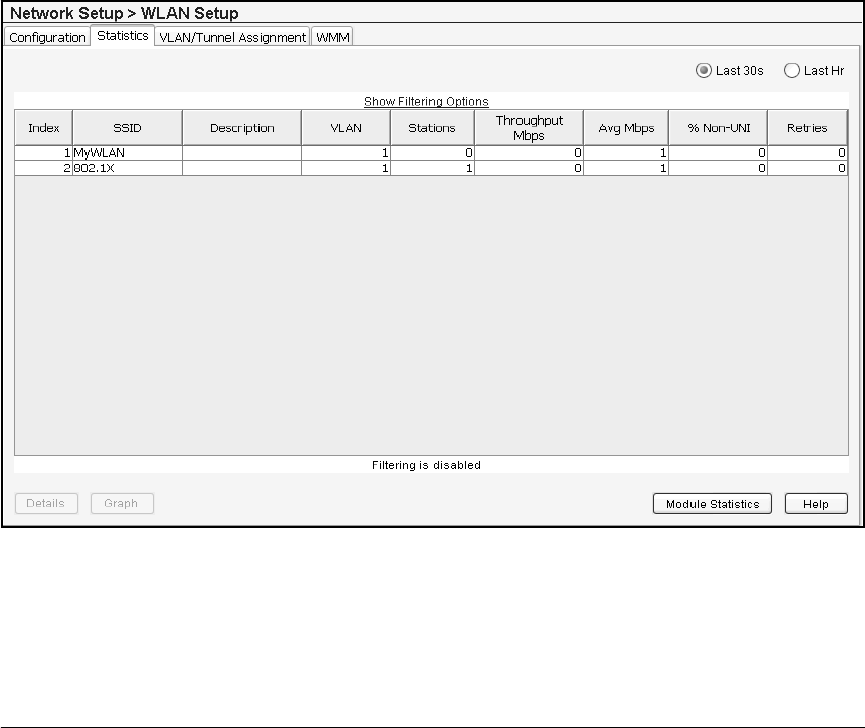

Figure 13-17.Module Statistics Button in the Network Setup > WLAN Setup >

Statistics Screen
