13-28

Wireless Network Management

Monitoring the Wireless Network

Select a WLAN and click this button to view:

■ the percentage of packets in this WLAN transmitted at each data rate

■ the percentage of packets in this WLAN that required a certain number of

retries (for 0 to 15)

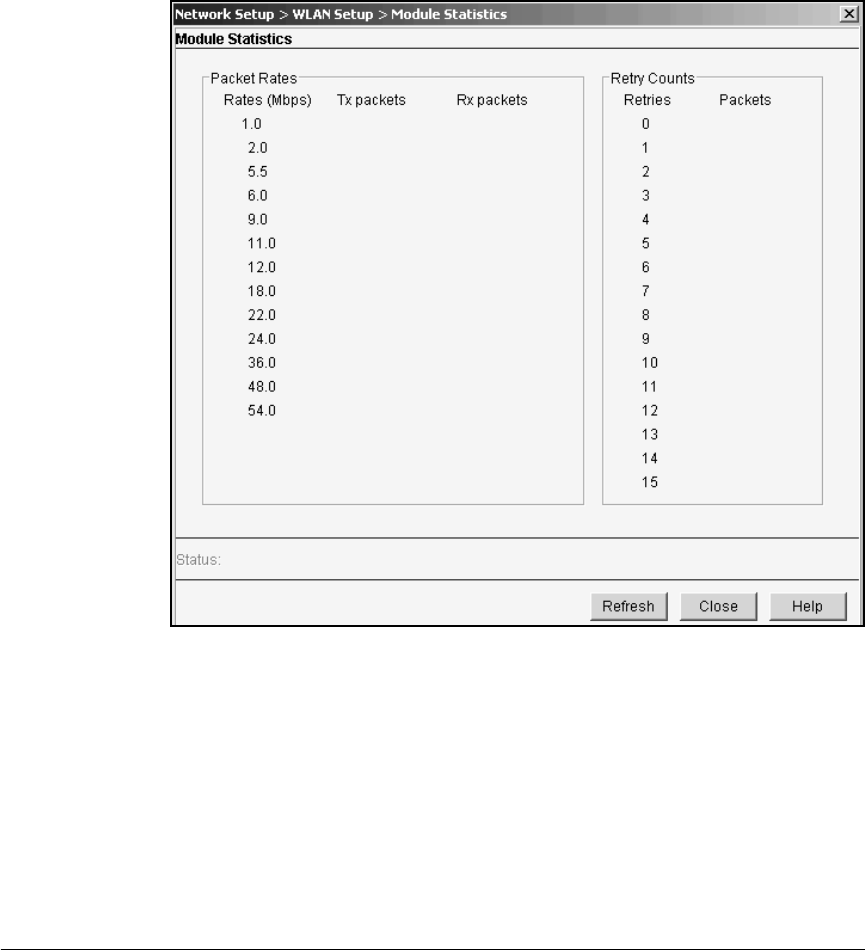

Figure 13-18.Module Statistics Screen

Click the Refresh button to update the statistics. When you have finished

viewing the screen, click the Close button.

Viewing Detailed WLAN Statistics

To view more detailed statistics for a specific WLAN, select the WLAN and

then click the Details button in the Network Setup > WLAN Setup > Statistics

screen.
