Wireless Network Management

Monitoring the Wireless Network

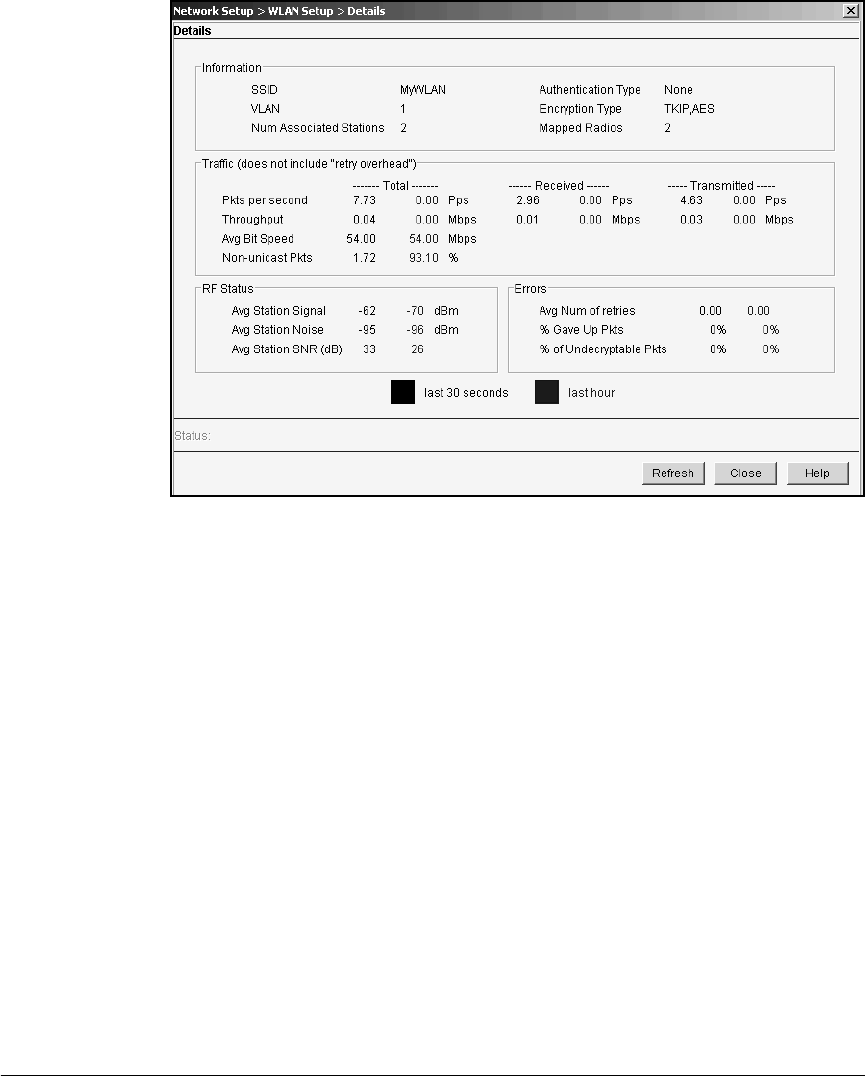

Figure 13-19.WLAN Statistics Details

The Information section shows settings for this WLAN including:

■ SSID

■ VLAN

■ security settings

• authentication type

• encryption type

The Information section also displays the number of stations associated to the

WLAN and of radios mapped to the WLAN. (If the Wireless Edge Services xl

Module is using normal mode configuration, all adopted radios are mapped to

the WLAN.)

The Traffic section displays the same information that is listed on the Network

Setup > WLAN Setup > Statistics screen. You can use the Traffic section to

monitor the quality and performance of the WLAN. The Web browser interface

reports speed in terms of packets per second, total throughput in Mbps, and

average speed in Mbps. The Web browser interface further breaks down

statistics into received and transmitted traffic.
