13-31

Wireless Network Management

Monitoring the Wireless Network

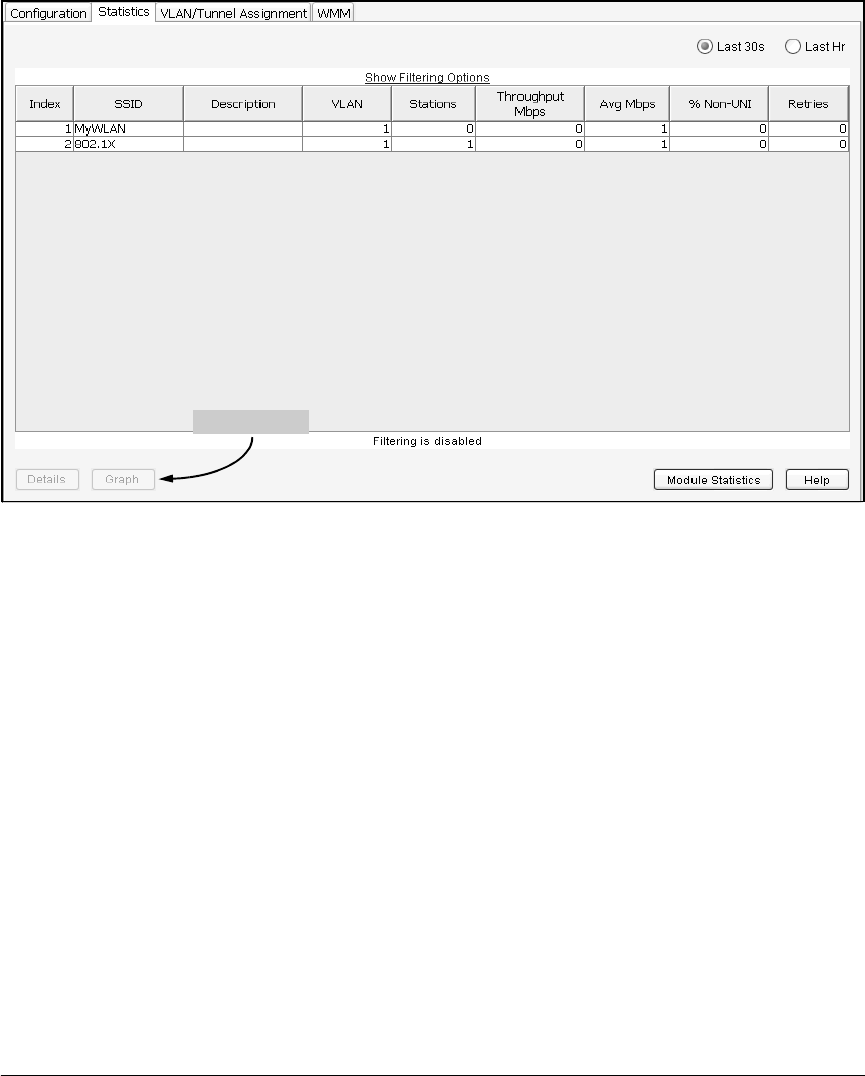

Figure 13-20.Graph Button in the Device Information > Wireless Statistics Screen

3. Select the WLAN.

4. Click the Graph button.

The WLAN Statistics screen is displayed.

Graph button
