13-34

Wireless Network Management

Monitoring the Wireless Network

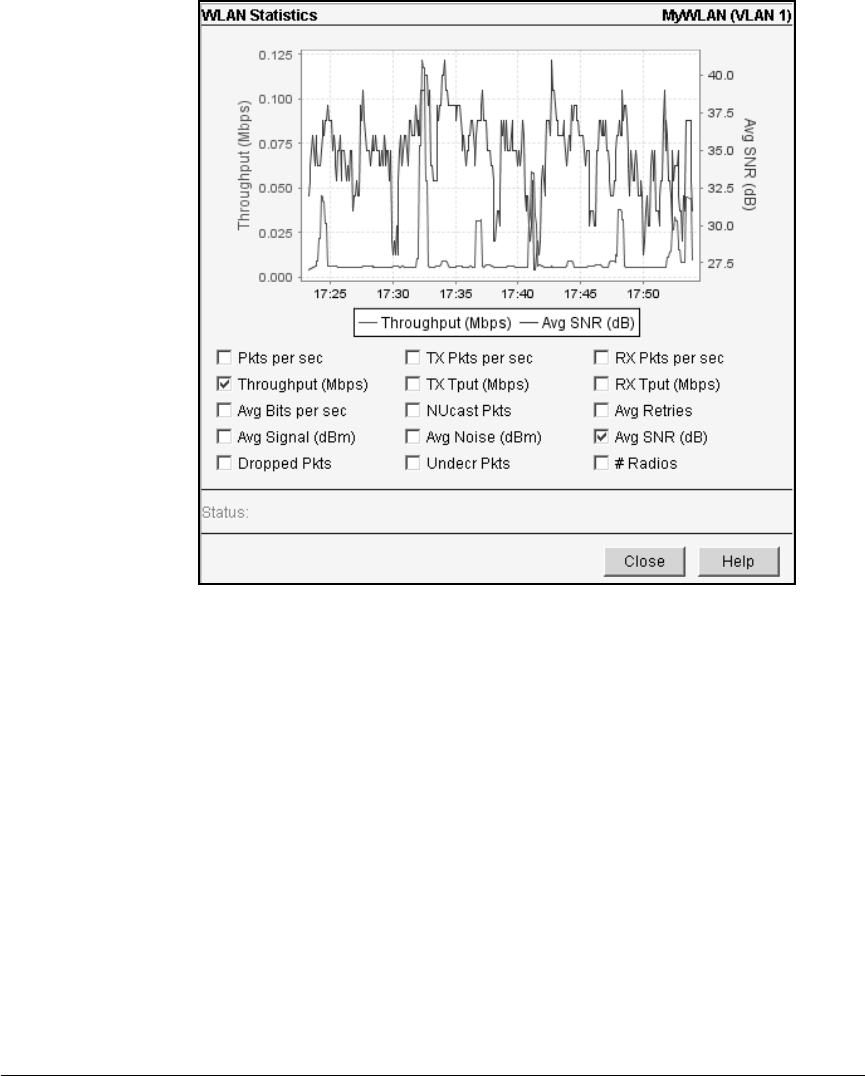

Figure 13-22.Comparing WLAN Statistics

The x-axis of the graph displays the time—in Figure 13-22, marked at 5 second

intervals. The y-axis adds a label that matches your choice. It also displays the

correct units for that type of statistic.

A line that is the same color as the y-axis label plots the statistic as it changes

over time.

You can select up to four boxes at once and compare statistics against each

other. When you have finished viewing the graph, click the Close button.

Module Statistics

You can also monitor all wireless traffic to and from stations associated with

this Wireless Edge Services xl Module. Select Network Setup and click the

Module Statistics tab.
